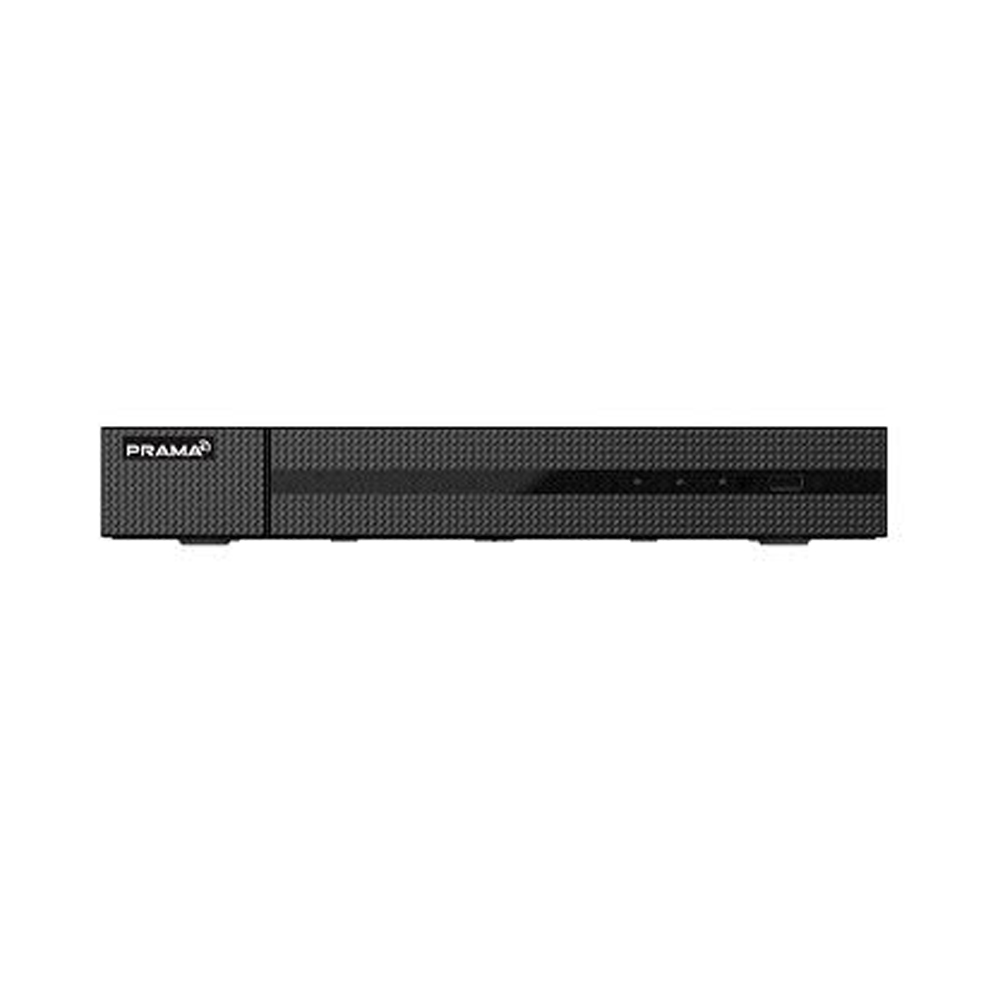

Prama PT-NR2A04-Q1 4-Ch 4K NVR

Availablity:In stock

₹4,954.00



Check if the product is available for delivery to your location


Share


Prama PT-NR2A04-Q1 4-Ch 4K Network Video Recorder.

  • H.265+/H.265/H.264/H.264+ video formats
  • Connectable to the third-party network cameras
  • Up to 16 IP cameras can be connected
  • Recording at up to 8 MP resolution
  • Live view, storage, and playback of the connected camera at up to 8 MP resolution HD Output
  • HDMI/VGA simultaneous output (PT-NR2A04-Q1)
  • HDMI and VGA independent outputs (PT-NR2A08-Q1 and PT-NR2A16-Q1)
  • HDMI Video output at up to 4K (3840 × 2160) resolution HD Storage
  • 1 SATA interface connectable for recording and backup
  • H.265+ compression effectively reduces the storage space and costs by up to 75% HD Transmission.

Technical Specifications

Brand Prama
Model No PT-NR2A04-Q1
Model Name 4-Ch 4K NVR
IP video input 4-ch
Incoming bandwidth 40 Mbps
Outgoing bandwidth 80 Mbps
HDMI output 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
VGA output 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
Audio output 1-ch, RCA (Linear, 1 K?)
Decoding format H.265/H.265+/H.264/H.264+/MPEG4
Live view/Playback resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback 4-ch
Capability 1-ch @ 8 MP / 4-ch @ 1080p
Network protocols TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
SATA 1 SATA interface
Capacity Up to 6TB for each disk
Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface 2 × USB 2.0
Power supply 12 VDC
Consumption ? 10 W
Working temperature -10 to +55º C (+14 to +131º F)
Working humidity 10 to 90 %
Dimensions 315 × 240 × 48 mm
Weight ? 1 kg
Warranty 3 Years
