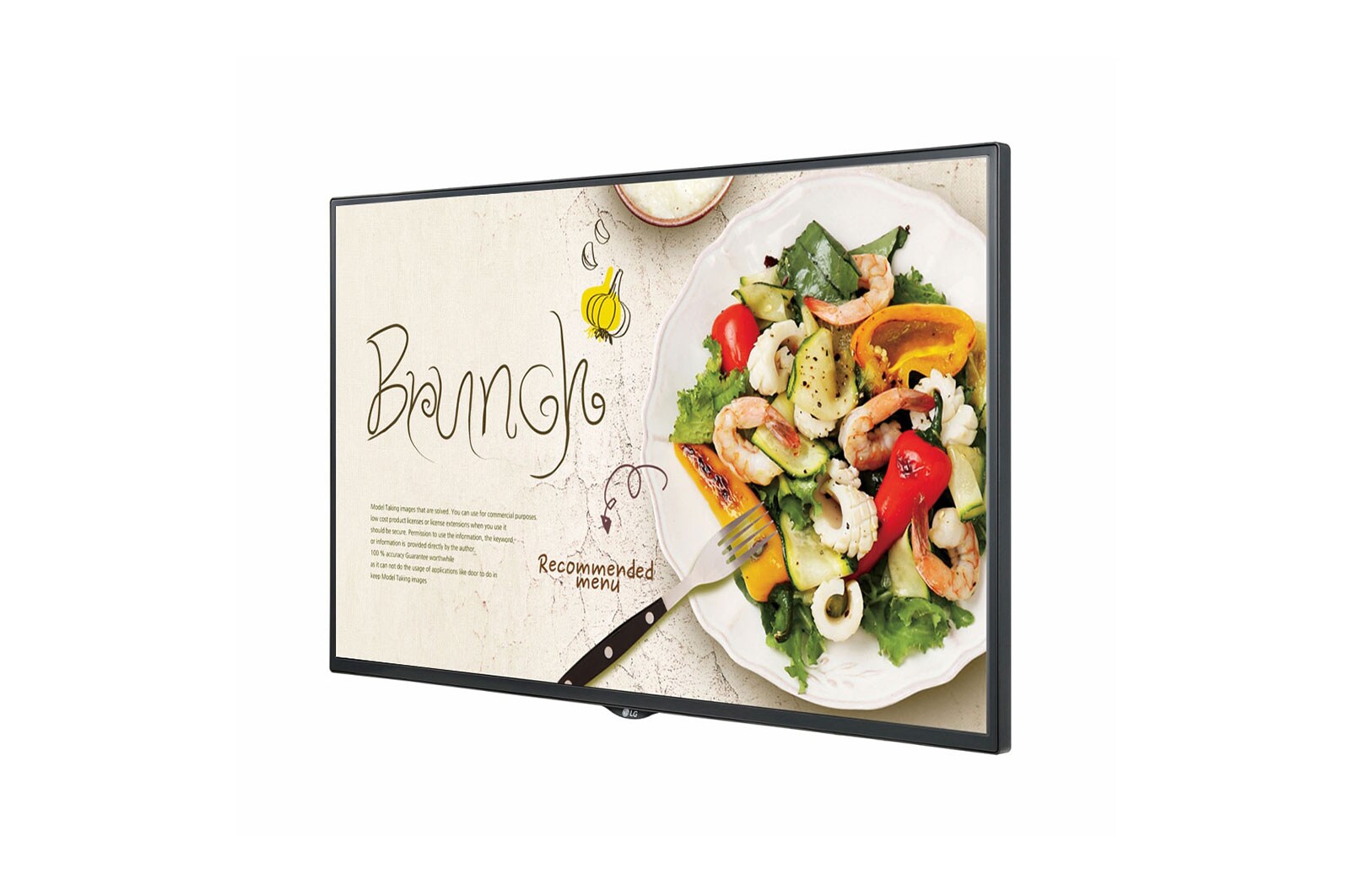

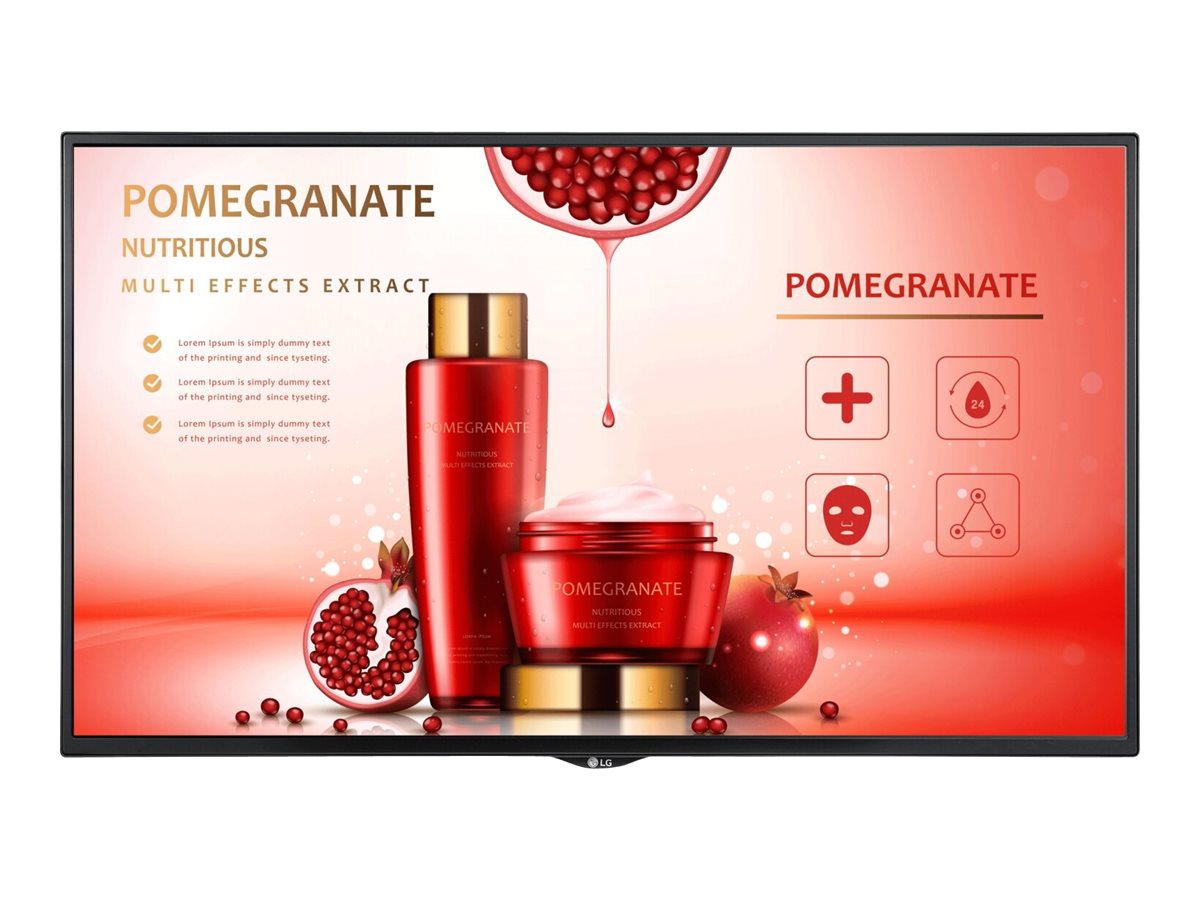

LG 49inch 49SM5KE LFD Signage Display



Check if the product is available for delivery to your location


Share


  • User-Friendly Smart Platform
  • Content Display and Management
  • Powerful Wireless Capabilities
  • Reliable Operation
  • Value-added Offerings
  • Industrial Design

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.

Enhanced Usability

A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.

Seamless Content Playback

During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS.

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

Suited for Industrial Design

The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

Technical Specifications

Brand LG
Model Name 49SM5KE
Screen Size 49 inch
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1,920 x 1,080 (FHD)
Brightness (cd/m²) 450
Contrast Ratio 1,100:1
Viewing Angle (HxV) 178 x 178
Response Time 12ms (G to G BW), 10.1ms (WOT)
Surface Treatment (Haze) Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze 1% (Typ.))
Life Time (Typ.) 50,000Hrs
Operation Hours 24Hrs

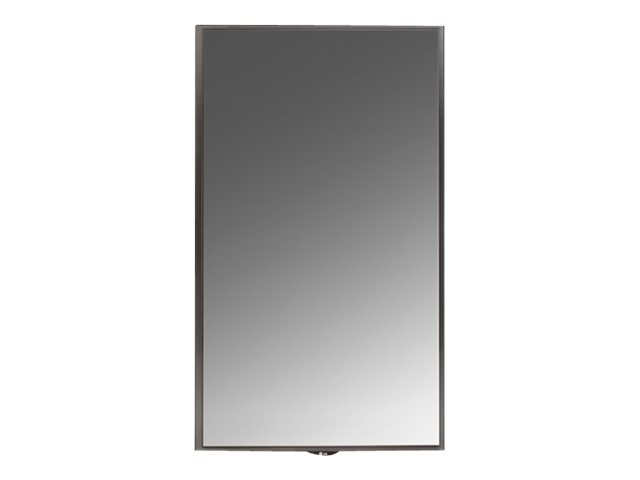

Orientation Landscape & Portrait
Input HDMI (3), DP, DVI-D, Audio, USB 3.0
Output DP(SST), Audio(Off/Fixed/Variable)
External Control RS232C In/Out, RJ45 In, IR Receiver In
Bezel Color Black

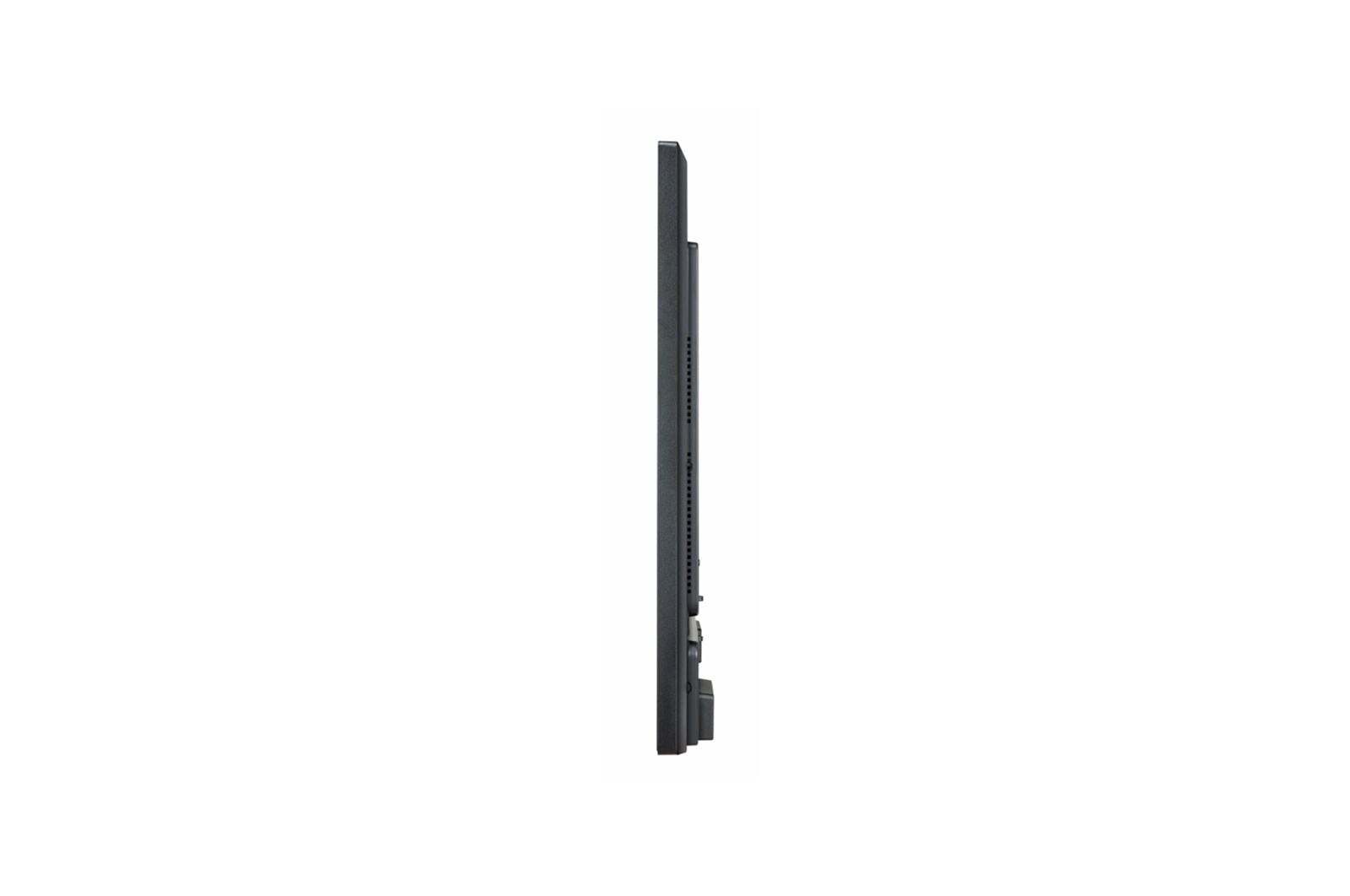

Bezel Width 11.9 mm (T/R/L), 18 mm (B)
Monitor Dimension (W x H x D) 1,238 x 714.9 x 54 mm
Weight (Head) 17.5kg
Monitor with Optional Stand Dimensions (W x H x D) 1,238m x 773.4 x 219.6 mm
Weight (Head+Stand) 20.8kg
Carton Dimensions (W x H x D) 1,330 x 807 x 170 mm
Power Consumption Smart Energy Saving 85W (TBD) / 105W
Packed Weight 21.7kg
VESA™ Standard Mount Interface 300 x 300 mm
SPECIAL FEATURES Internal Memory 8GB (System 4GB, Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, webOS 4.0, Embedded CMS, Fail Over, Image Customization, PIP/PBP(2), Screen Share, Video Tag (2), Play via URL, Gapless Playback, Tile Mode Setting (Up to 15x15), Setting Data Cloning, Firmware Update by Network, SNMP (Ver. 1.4), Control Manager, Crestron Connected®*, Extron IP Link, Smart Energy Saving, Beacon, HDMI-CEC (2)**, Built-in Speaker (10W+10W)
Operation Temperature 0°C to 40°C
Operation Humidity 10% to 80%
Power Supply 100-240 V~, 50/60 Hz
Power Type Built-In Power
Power Consumption Typ./Max. 85W (TBD) / 105W
Safety IEC 60950-1/EN 60950-1/UL 60950-1
EMC FCC Class "A"/CE/KC
ErP/Energy Star N/A / Yes (Energy Star 8.0)
OPS type compatible Yes
External Media player Attatchable Yes
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control+/Control
Basic Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
Optional Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
Warranty 3 Years Onsite Warranty
