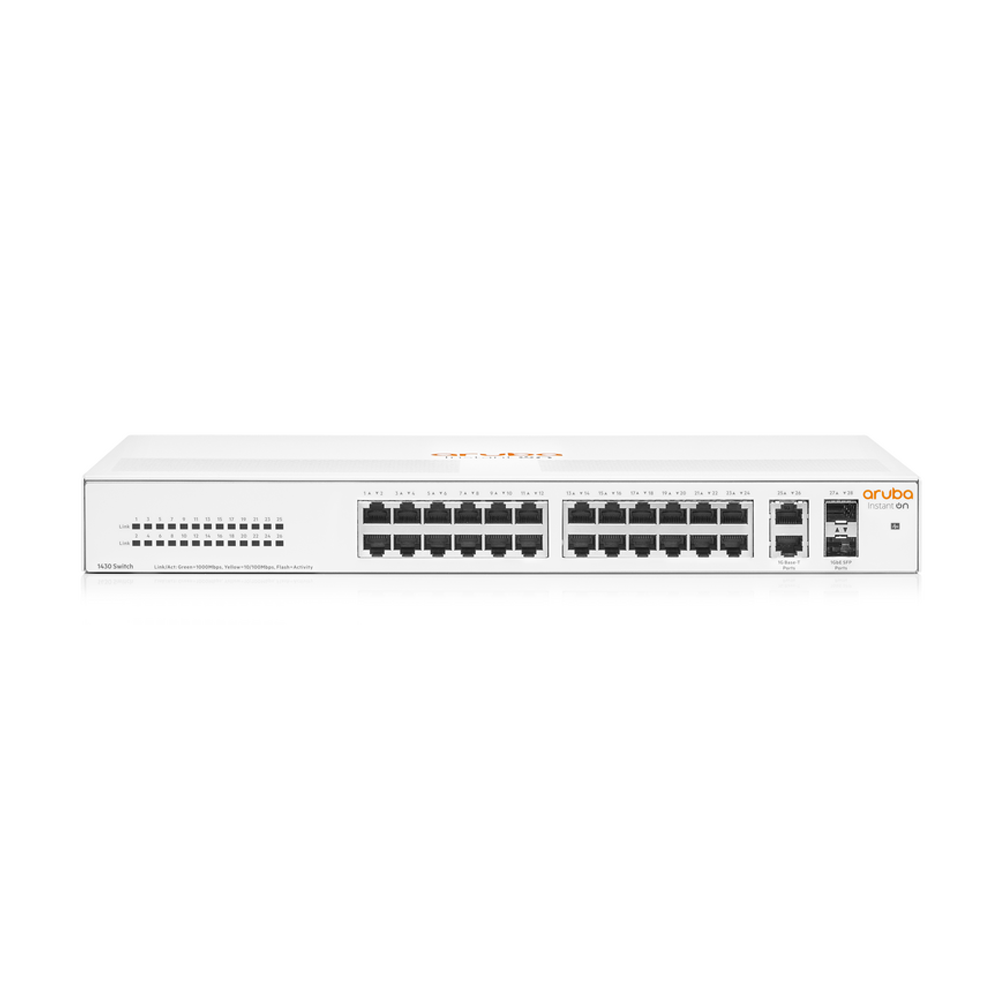

HPE Aruba R8R50A Instant On 1430 26G 2SFP Unmanaged Switch



Check if the product is available for delivery to your location


Share


  • Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
  • No configuration or management needed.
  • Plug-and-play with fully automated functions and zero ongoing maintenance.
  • Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
  • Fan-less design for silent deployment in office spaces.

Unmanaged Ethernet Connectivity for Small Businesses

The Aruba Instant On 1430 Switch Series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models.

With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.

Two dedicated 1G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.

Aruba Instant On Limited Lifetime support provides 24x7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.

Plug-and-Play Operation

The Aruba Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration.

The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.

No configuration beyond installation of optional 1GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.

Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).

Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.

Energy Efficiency and Traffic Optimization

The Aruba Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.

Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.

Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.

Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.

Technical Specifications

Manufacturer Aruba
Brand Aruba
Product Series 1430
Model 1430 26G 2SFP Switch
Model No R8R50A
Features Flow Control, Auto-sensing Per Device, Mdi/mdi-x Switch, Wall Mountable, Spanning Tree Protocol (stp) Support, Fanless, 12mb Packet Buffer, Voip Support, Diffserv Code Point (dscp) Support
Memory Memory Technology EEPROM / RAM Installed 128 kilobyte
Interfaces 26 X 10/100/1000 Base-t Rj-45 2 X 100/1000 Sfp
Compliant Standards Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3az
Form Factor (Hubs & Switches) Desktop, Rack-mountable, Wall-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 16384 Entries
Manageable No
Ports 26 X 10/100/1000 + 2 X 100/1000 Sfp
Total Number of Network Ports 26
Product Type Switch
Remote Management None
Status Indicators Link/activity, PoE max, Port status
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Power consumption Maximum: 16.4W Idle: 8W
Input voltage 100-127VAC / 200-240VAC, depending on model
Media Type Supported Twisted Pair, Optical Fiber
Switching capacity 56 Gbps
Throughput 41.68 Mpps
Memory and processor 32Mb Flash; Packet buffer size: 12.0 Mb
Power supply name Internal Power Supply
Power Source Power Supply
Power Supply Type External
Connectivity Interfaces 26 X 10/100/1000 Base-t Rj-45 / 2 X 100/1000 Sfp
Network Technology 10/100/1000Base-T,1000Base-X
Ethernet Technology Gigabit Ethernet
Operating Temperature 0°C to 40°C, 32°F to 104°F
Management features Unmanaged
Detailed product description 26 RJ-45 autosensing 10/100/1000 ports 2 SFP 100/1000 Mbps ports min=0 \ max=2 SFP Transceivers 1U - Height
Cooling System Passive
Ventilation Fanless
Mean Time Between Failures (MTBF) 1,748,817 Hours
Rack Form Factor 1 RU
Color White
Weight 2.27 kg
Product Dimensions 22.5 x 38.8 x 4.4 cm
Warranty Limited Lifetime Warranty
