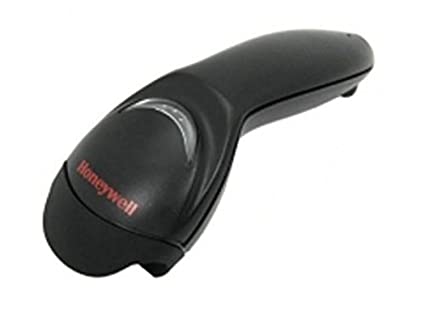

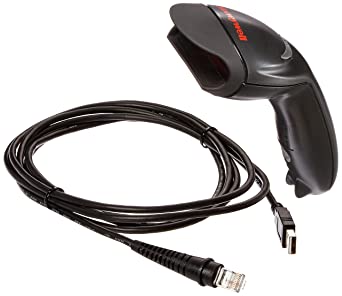

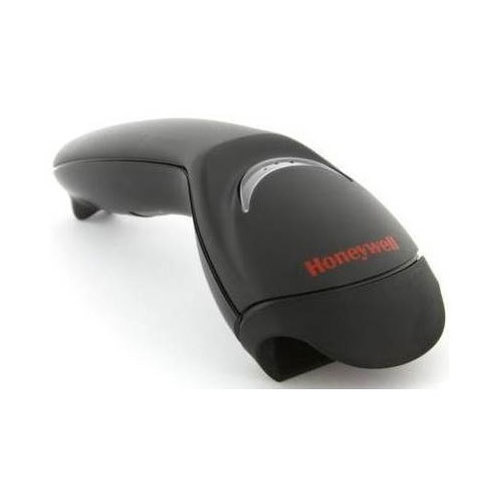

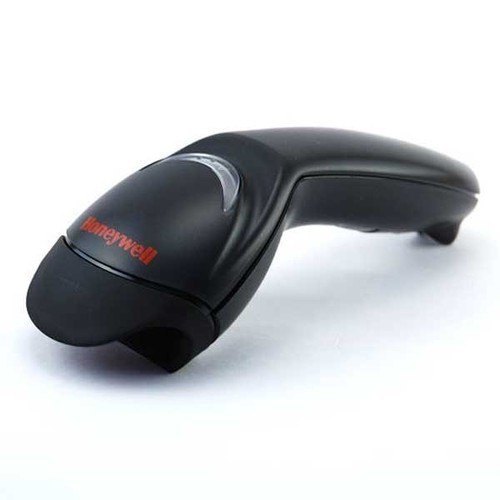

Honeywell MK5145 31A38 single line laser scanner

Availablity:In stock

₹2,868.00



Check if the product is available for delivery to your location


Share


The Eclipse 5145 device is a single-line, handheld laser scanner with a compact form factor that's perfect for retail applications. With patented CodeGate technology, your team members can easily target the desired barcode and complete data transmission with a simple press of a button.

The Eclipse 5145 handheld scanner is an economy laser-based alternative to CCD scanners. Its compact form factor and broad feature set make is simple to use in a variety of applications, including: Menu scanning Point-of-sale Document processing Inventory control Featuring Honeywell’s patented CodeGate technology, the Eclipse 5145 scanner lets you easily target the desired barcode and complete data transmission with the press of a single button. We’ve equipped the Eclipse 5145 device with our state-of-the-art scanning technology. That gives it a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from the intended barcode, simplifying targeting. You’ll also get a workflow boost from CodeSense, a unique feature that the Eclipse scanner uses in the absence of infrared object detection. CodeSense provides you with a pulsing laser line for barcode detection. When the scanner detects a barcode, the laser line switches from sleep mode to a constant state so you can begin scanning right away. Find out more about what your business can accomplish with the Eclipse 5145 scanner and Honeywell workflow solutions. Contact us today.

Technical Specifications

Brand Honeywell
Model number MK5145-31A38-I
Scanner type handheld
Scan pattern laser Single scan line
Scan speed 72 scan lines per second
Connectivity USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Decode capability Reads standard 1D and GS1 DataBar symbologies
Drop tolerance Designed to withstand 1.5 m (5 ft) drop
Power 5 VDC + 0.25 V
Print contrast 35% minimum reflectance difference
Weight 100 g (3.5 oz)
Dimension 169 mm x 63 mm x 51 mm (6.7 in x 2.5 in 2.0 in)
Warranty 3 year factory warranty
