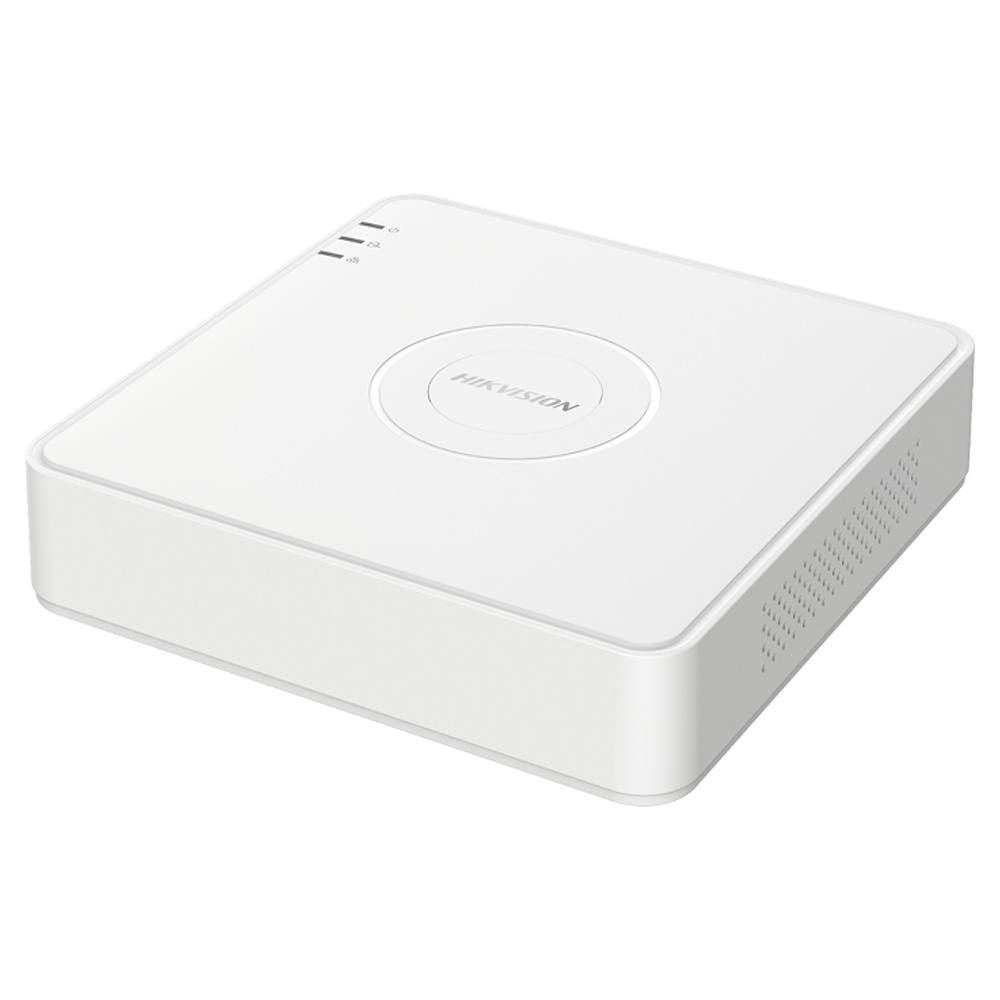

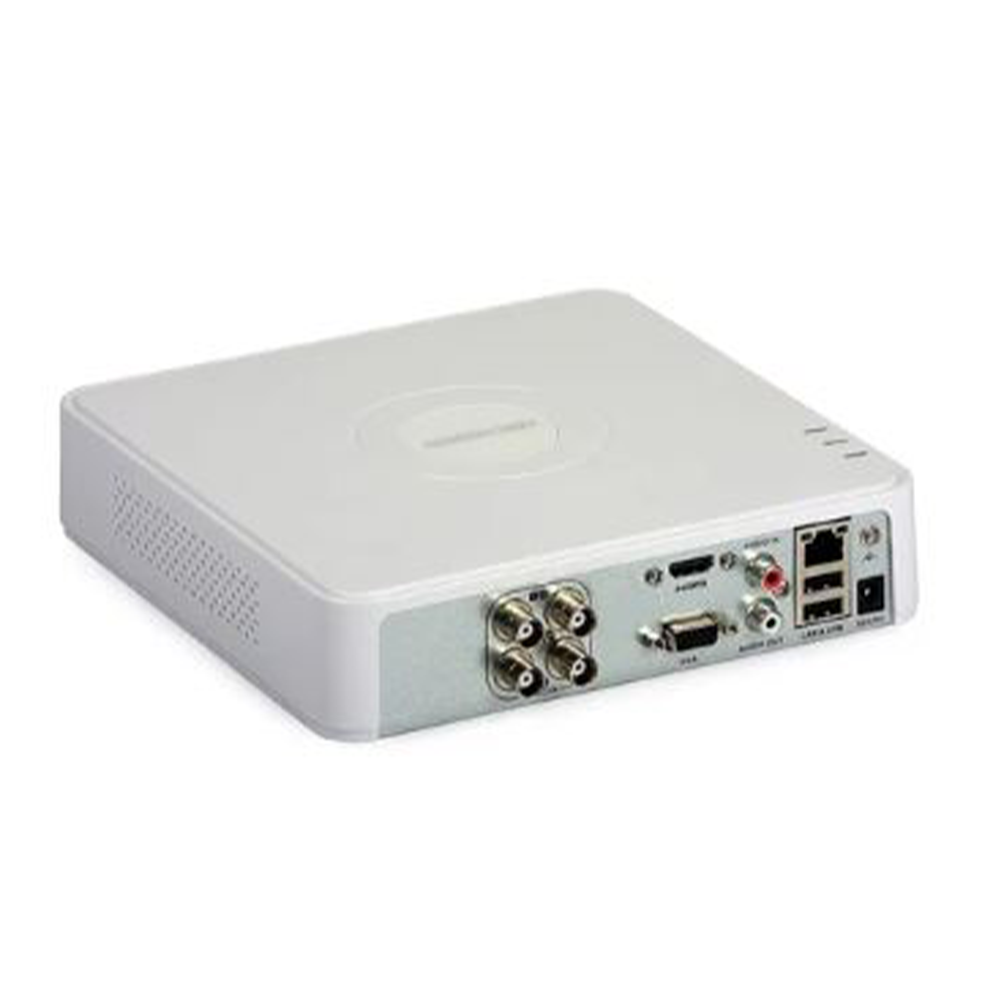

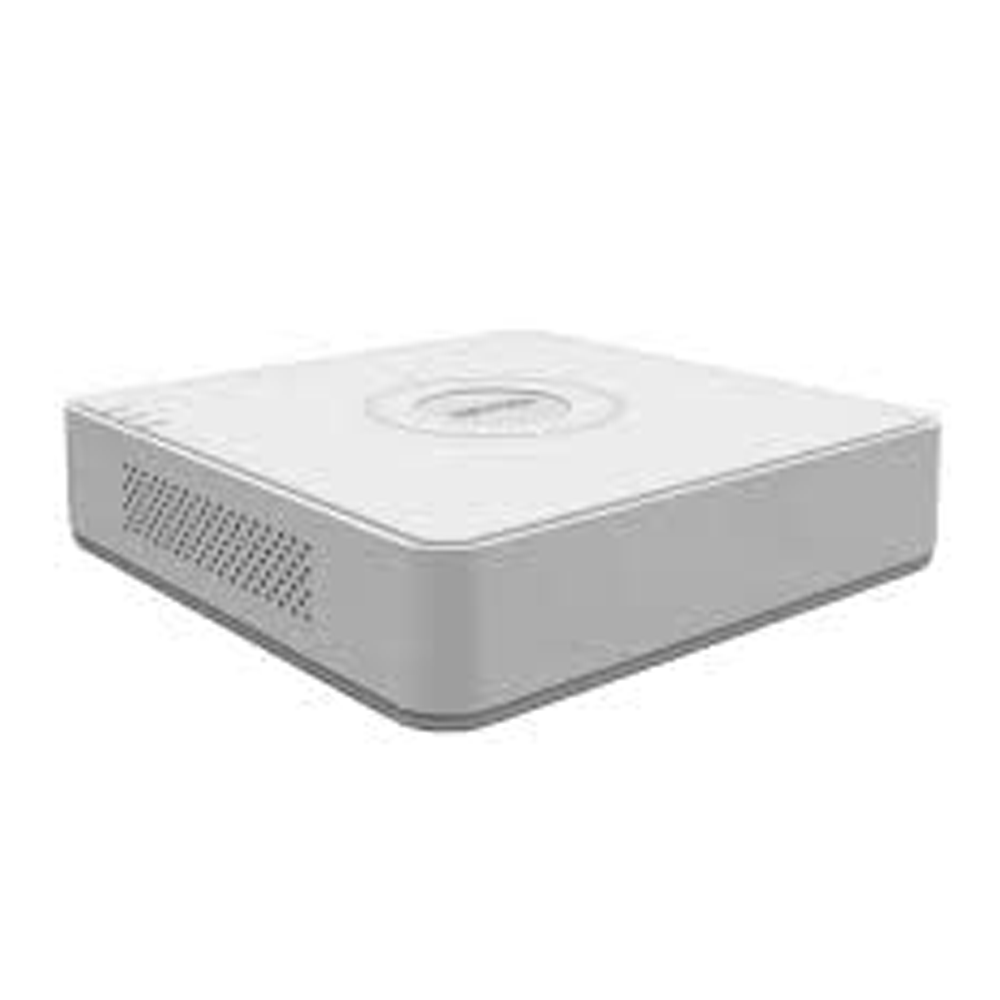

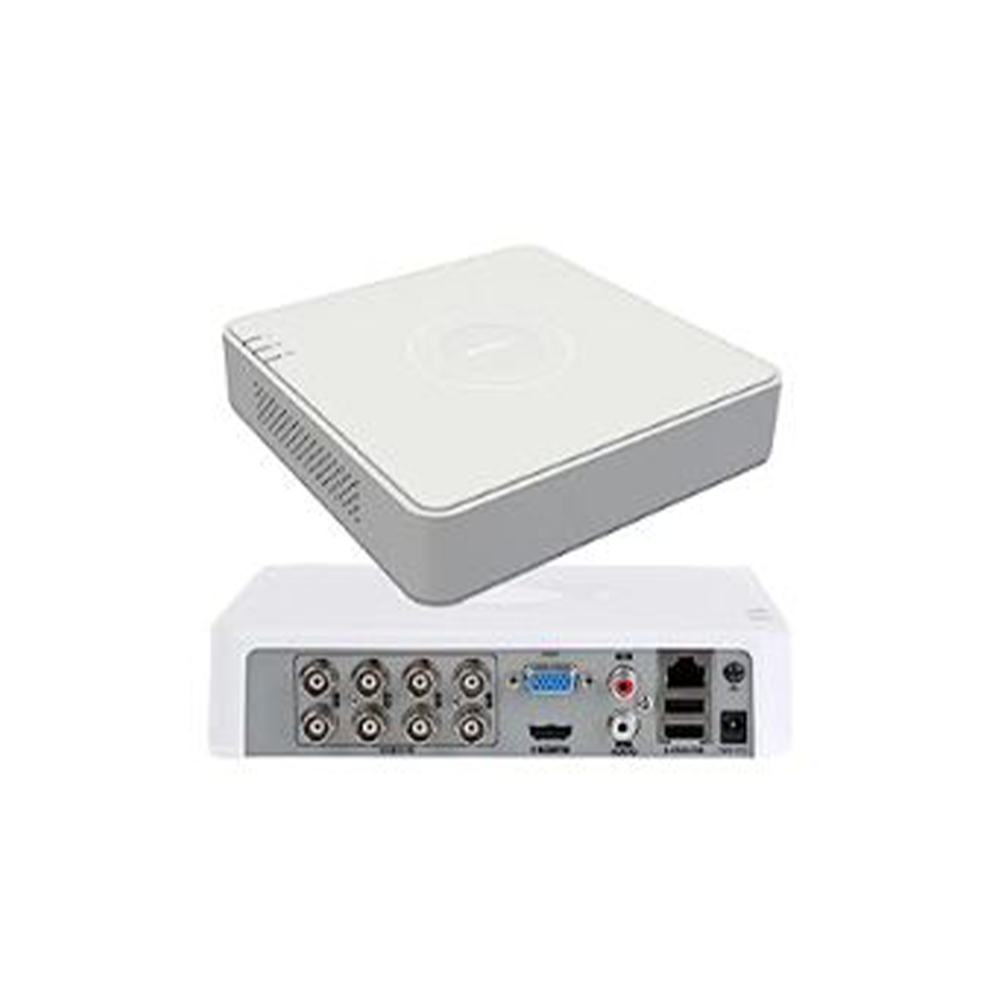

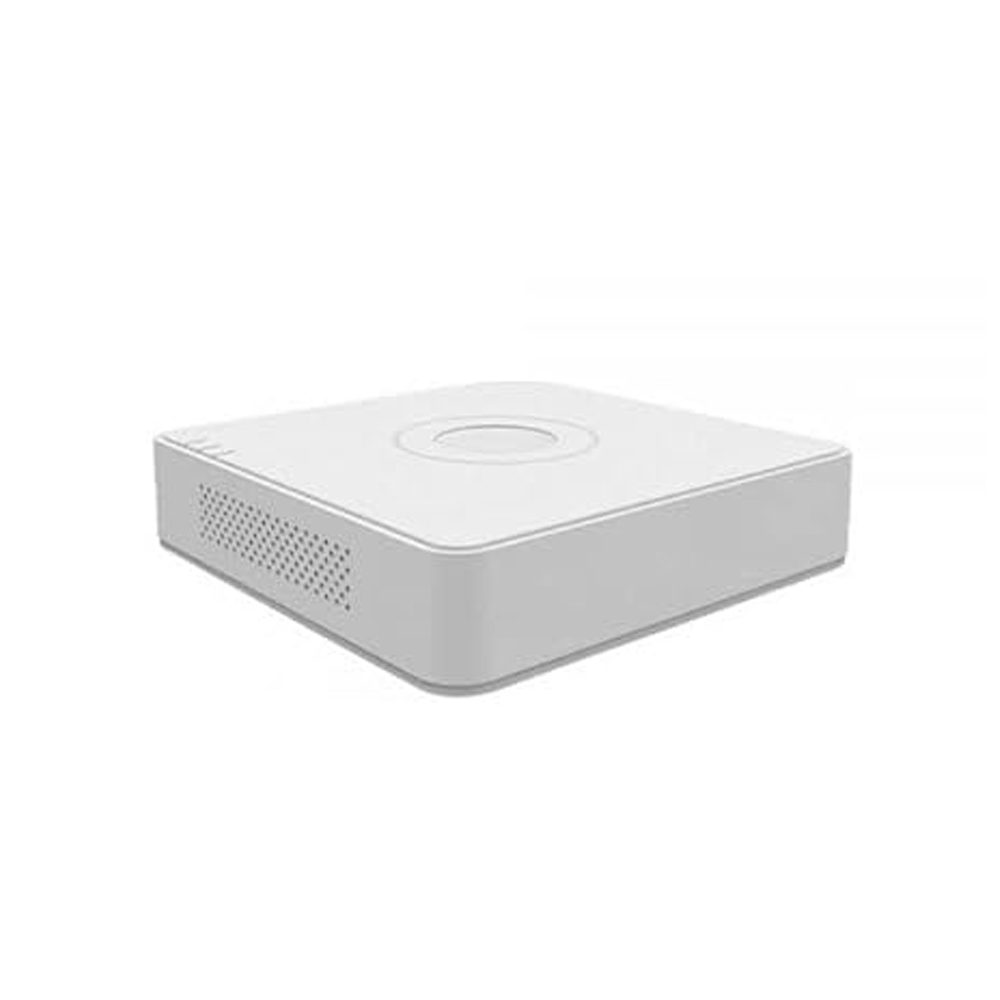

Hikvision IDS-7108HQHI-M1/S 2MP HD 8CH Acusense DVR Plastic
Availablity:In stock
₹6,058.00
Check if the product is available for delivery to your location
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- Deep learning-based perimeter protection
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 12-ch IP camera inputs (up to 6 MP)
- Up to 1080p@15 fps encoding capability
Deep learning based human and vehicle targets classification of Motion Detection 2.0 Deep learning-based perimeter protection H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video inputs Audio via coaxial cable Up to 12-ch IP camera inputs (up to 6 MP) Up to 1080p@15 fps encoding capability
Technical Specifications
| Brand | Hikvision |
| Model No | IDS-7108HQHI-M1/S |
| Model Name | 2MP HD 8CH Acusense DVR Plastic |
| IP video input | 2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Audio compression | G.711u |
| CVBS input | Support |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDCVI input | 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| AHD input | 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| Analog video input | 8-ch BNC interface (1.0 Vp-p, 75), supporting coaxitron connection |
| Audio input/Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 K) 8-ch via coaxial cable |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz/1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Encoding resolution | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Audio output | 1-ch, RCA (Linear, 1 K) |
| Stream type | Video, Video & Audio |
| Synchronous playback | 8-ch |
| Dual stream | Support |
| Audio bit rate | 64 Kbps |
| Video bit rate | 32 Kbps to 6 Mbps |
| Power supply | 12 VDC, 1.33 A |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working humidity | 10% to 90% |
| Dimensions | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
| Consumption | 12 W |
| Weight | 1 kg |
| Network interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| USB interface | Real panel: 2 × USB 2.0 |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Remote connections | 64 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| HDTVI input | 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
| Serial interface | RS-485 (half-duplex) |
| Warranty | 2 years Warranty |
