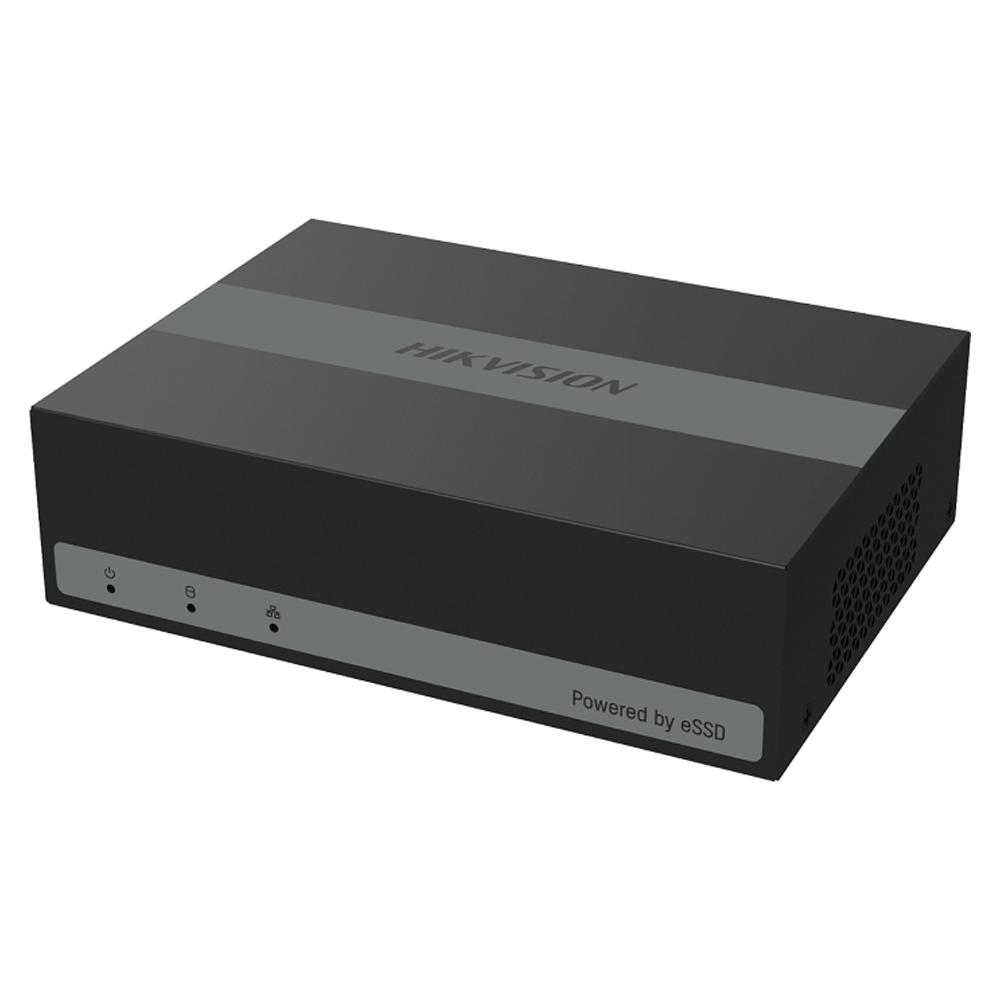

Hikvision DS-E04HQHI-B 4-Ch 2MP\4MP Lite 1U H.265 DVR with 512Mb eSSD Drive

Availablity:In stock

₹6,218.00



Check if the product is available for delivery to your location


Share


  • Powered by eSSD technology
  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • Deep learning-based perimeter protection
  • Scene-adaptive bitrate control video compression
  • Up to 3K/5MP Lite@12 fps encoding capability
  • Low power consumption
  • Audio via coaxial cable

Built-In SSD

  • Minimalist eSSD design brings low power consumption
  • Integrated storage design provides the plug-and-play device use

Easy Installation

  • Mini size design saves installation space
  • Anti-vibration design and light weight satisfy more installation conditions
  • Compression and Recording
  • Scene-adaptive bitrate control technology would precisely allocate videos in eSSD according to the actual scene
  • Full channel recording at up to 2 MP Lite resolution

Smart Function

  • Deep learning-based motion detection 2.0
  • Smart search for efficient playback

Technical Specifications

Brand Hikvision
Model No DS-E04HQHI-B
IP video input 1-ch Up to 6 MP resolution Support H.265+/H.265 IP cameras
Audio compression G.711u
CVBS input Support
HDCVI input 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
AHD input 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Analog video input 4-ch BNC interface (1.0 Vp-p, 75), supporting coaxitron connection
Audio input/Two-way audio input 4-ch via coaxial cable
HDMI/VGA output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz/1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Encoding resolution When 1080p Lite mode is not enabled: 3K Lite/5 MP Lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K Lite/5 MP Lite/4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
Frame rate Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 5 MP stream access: 5 MP Lite@12fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 4 MP stream access: 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 3K Lite/5 MP Lite@12fps; 4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) *: 3K Lite/5 MP@12 fps is only available for channel 1. Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Audio output 1-ch via HDMI
Stream type Video, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
Synchronous playback 4-ch
Audio bit rate 64 Kbps
Video bit rate According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
Power supply 12 VDC, 1 A
Working temperature -10 °C to 45 °C (14 °F to 113 °F)
Working humidity 10% to 90%
Dimensions 151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)
Consumption 5.4 W
Weight 0.5 kg
Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
USB interface Rear panel: 2 × USB 2.0
Capacity Built-in 512 GB eSSD (480 GB available) Note: The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only
Remote connections 32
Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
Video compression H.265 Pro/H.265
HDTVI input 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
Warranty 2 Year
