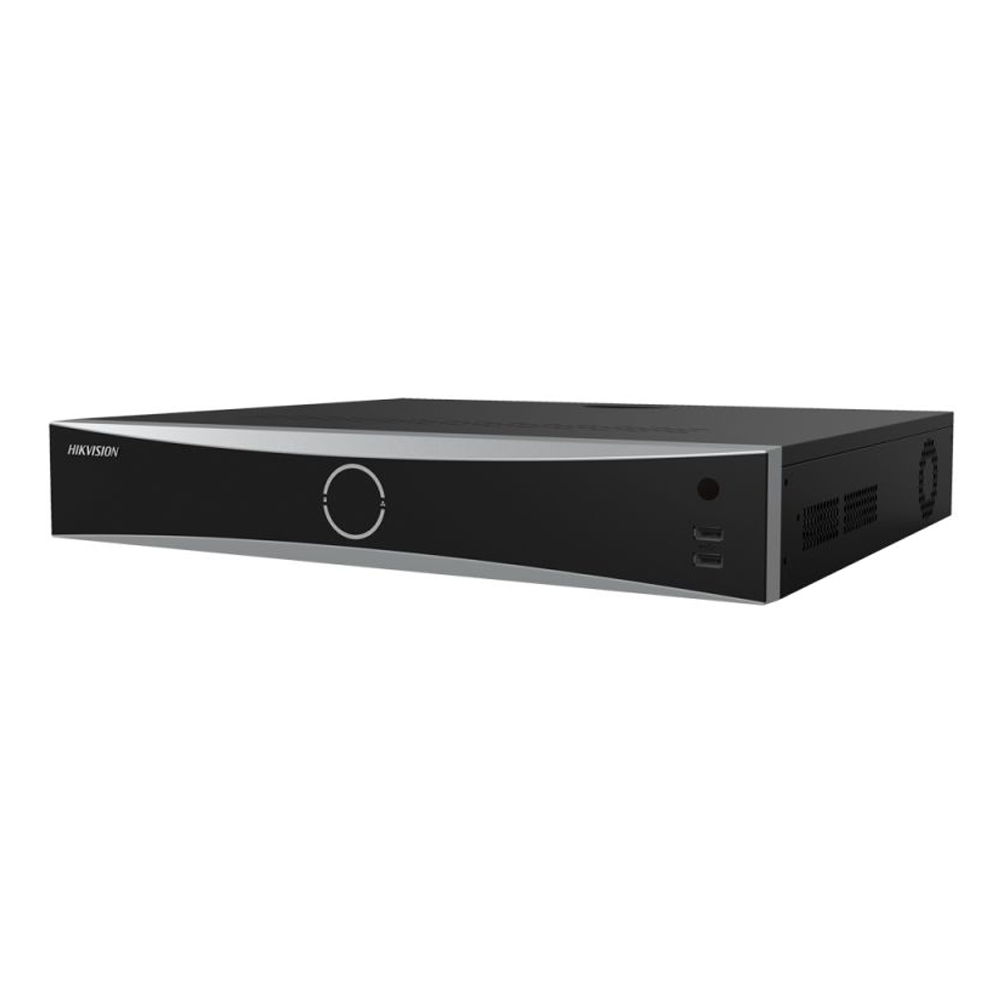

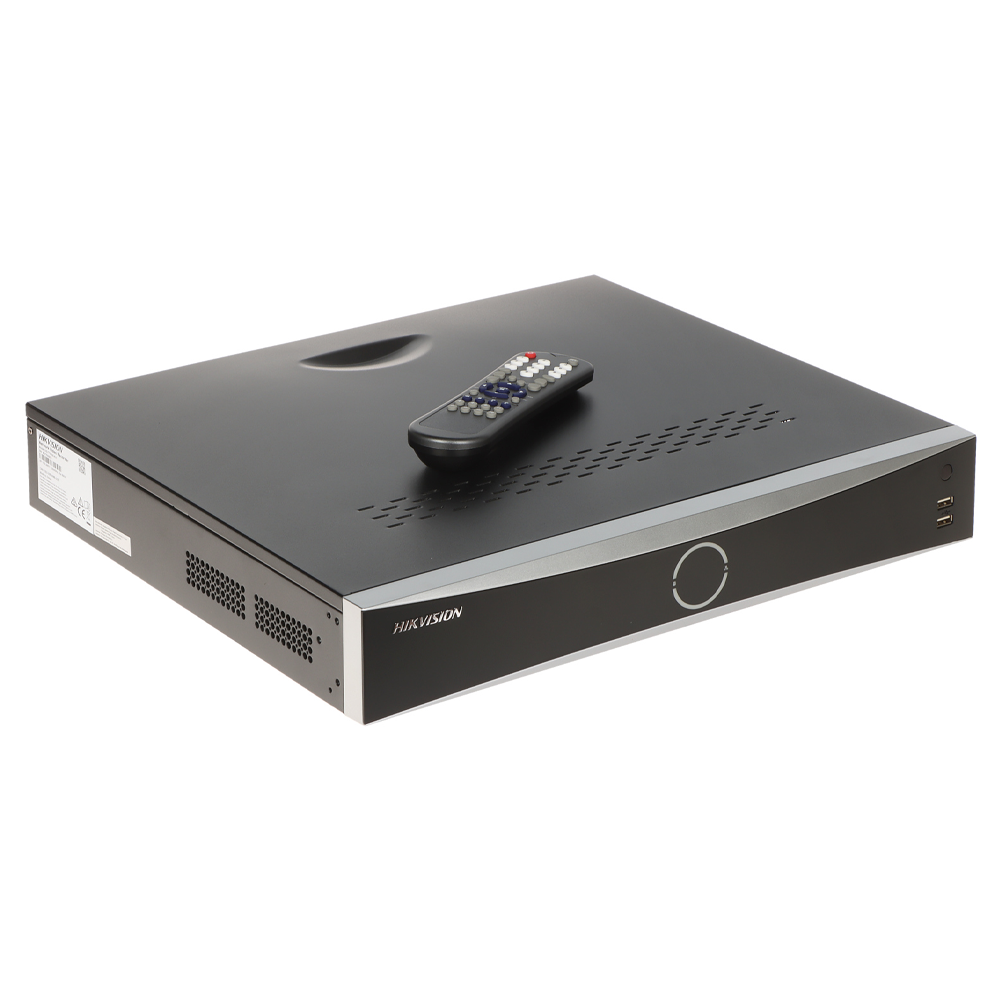

Hikvision DS-7716NXI-K4 16-ch 2HDD H.265+ NVR



Check if the product is available for delivery to your location


Share


Hikvision DS-7716NXI-K4 16-ch 2HDD H.265+ NVR

  • Up to 16-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
  • Up to 160 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs

Technical Specifications

Model No DS-7716NXI-K4
Brand Hikvision
Model Name 16-ch NVR
IP video input 32-ch
Incoming bandwidth 160 Mbps
Outgoing bandwidth 160 Mbps
HDMI output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Audio output 1-ch, RCA (Linear, 1 K)
Decoding format H.265/H.265+/H.264+/H.264
Recording resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Network protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection 128
SATA 4 SATA interfaces
Capacity Up to 10 TB capacity for each HDD
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input )
Network interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power supply 100 to 240 VAC, 50 to 60Hz
Consumption 20 W (without HDD)
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimensions 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
Weight 5 kg (without HDD, 11 lb.)
Warranty 3 Years
