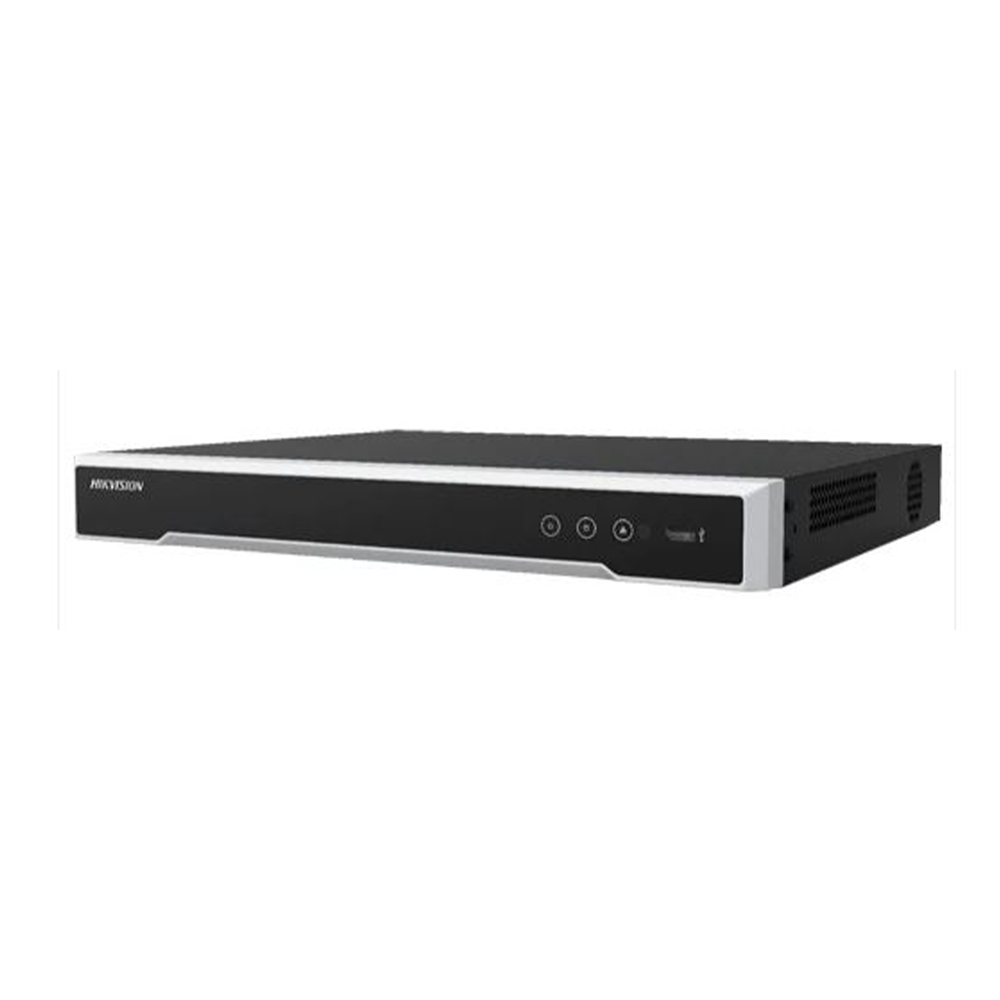

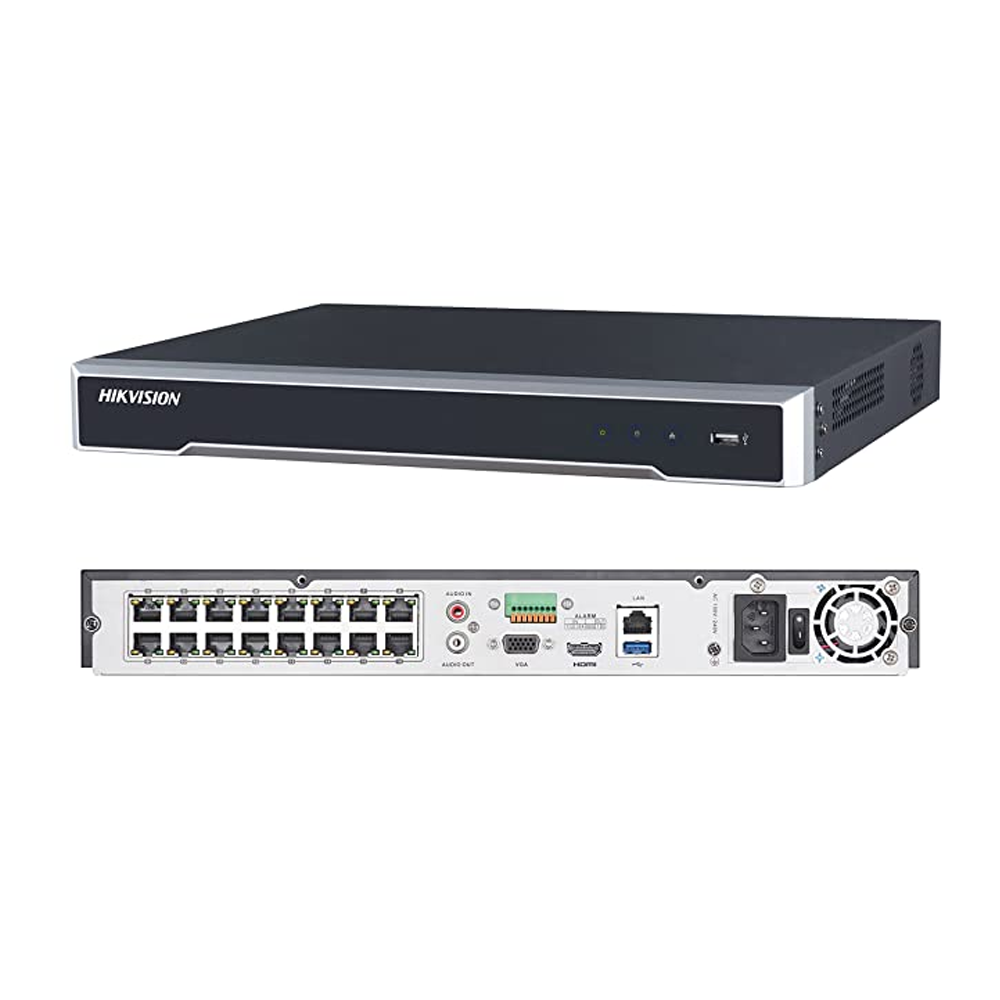

Hikvision DS-7616NI-K2 16-ch 2HDD H.265+ NVR
₹12,188.00
Check if the product is available for delivery to your location
Professional and Reliable, HD Input, HD Output, HD Storage, HD Transmission, Various Applications.
Hikvision DS-7616NI-K2 Up to 16 channel IP cameras can be connected Supports decoding H.265+/H.265/H.264+/H.264 video formats Up to 4K high-definition live view, storage and playback Up to 8-ch @ 1080p decoding capacity Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
Technical Specifications
| Brand | Hikvision |
| Model No | DS-7616NI-K2 |
| Model Name | 16-ch NVR |
| IP video input | 16-ch |
| Incoming bandwidth | 256 Mbp |
| Outgoing bandwidth | 160 Mbps |
| HDMI output | 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio output | 1-ch, RCA (Linear, 1 K) |
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Recording resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Capability | Up to 6 TB capacity for each HDD |
| Network protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| SATA | 2 SATA interfaces |
| Capacity | Up to 6TB capacity for each HDD |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1k) |
| Network interface | 1 RJ-45 10/100/1000 Mbps Self Adaptive |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power supply | 100 240VAC, 10W |
| Consumption | 15 W (without enabling PoE) |
| Working temperature | -10 to +55° C (14 to 131° F) |
| Working humidity | 10 to 90 % |
| Dimensions | 385 × 315× 52 mm (15.2& × 12.4& × 2.0) |
| Weight | 1 kg (without HDD, 2.2 lb.) |
| Warranty | 3 Years |
