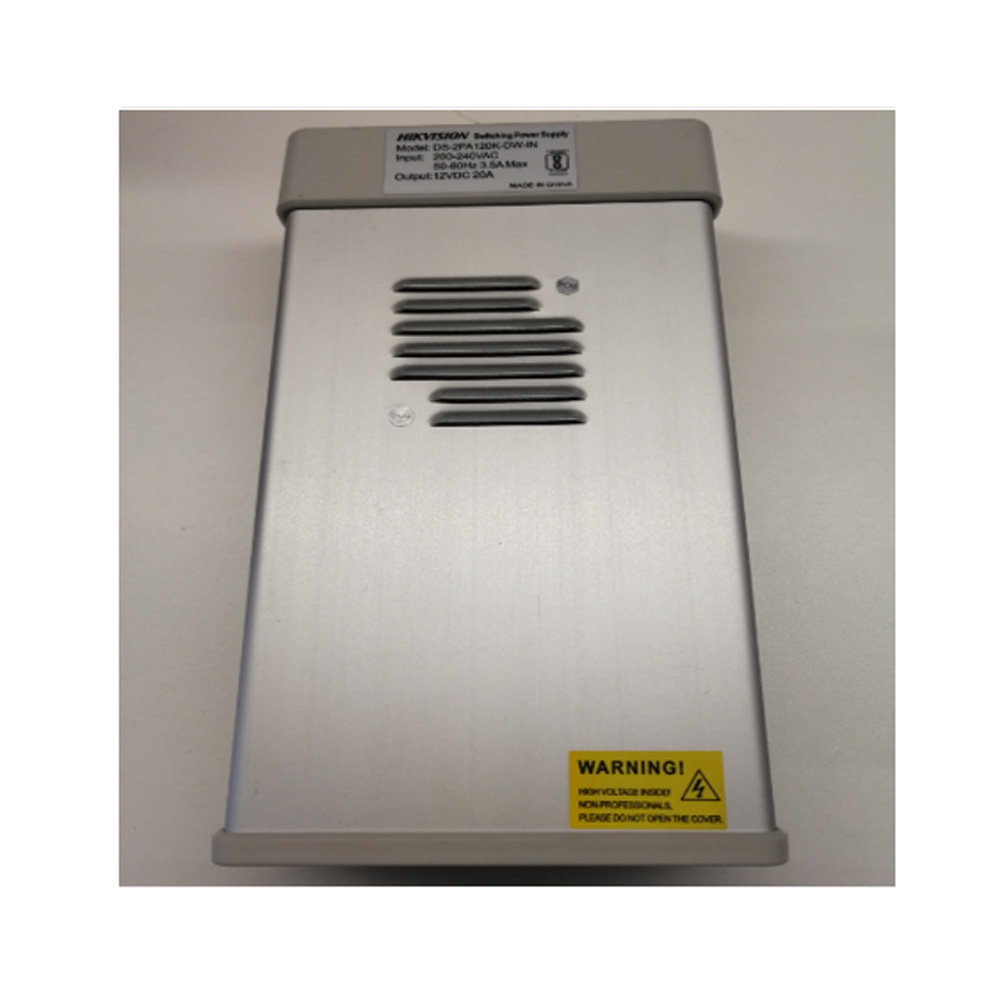

HikVision DS-2FA120K-DW-IN CCTV Power Supply

Availablity:In stock

₹1,524.00



Check if the product is available for delivery to your location


Share


DS-2FA Series switch model power supply can be applied to indoor CCTV system. It uses high quality metal housing to achieve better heat radiation.

Feature and Function

  • BIS Approved.
  • Highly Integrated SMPS Switcher I.C Design.
  • Surge Protection, Over Temperature Protection.
  • Over Current, Over Voltage & Over Load Protection.
  • High-efficiency, low energy Consumption.
  • Low Ripple Voltage (mV P-P): <5%.
  • Works under low voltages and protects high voltage where linear fails.
  • Wall Mountable/ Desktop Type with wall hanging hook.
  • Inbuilt cooling fan for better heat dissipation.
  • Covered Input AC & Output DC terminals for safety purpose.
  • Compact size, lightweight & shock proof.
  • Screw type block terminals for easy installation.

Technical Specifications

Brand Hikvision
Model No DS-2FA120K-DW-IN
Model Name SMPS
Input 200-240VAC 50-60Hz, 3.5A Max
Output 12VDC 20A
Housing Metal
Min Input Voltage 180V, 47 Hz
Max Input Voltage 270V, 63 Hz
Output Screw terminal 4(Two +V and Two -V)
Installation Wall Mountable/ Desktop
Operating temperature 10 °C to 40 °C
Storage temperature -40 °C to 70 °C
Operating humidity 40% to 90% (no condensation)
Storage humidity 10% to 93% (no condensation)
