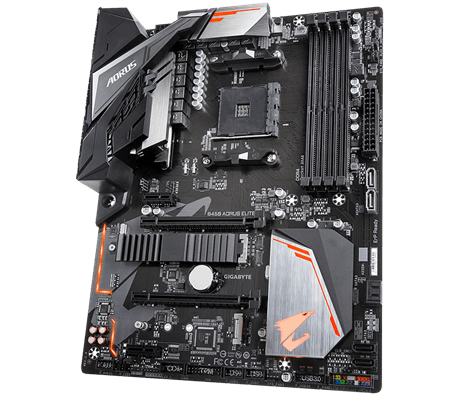

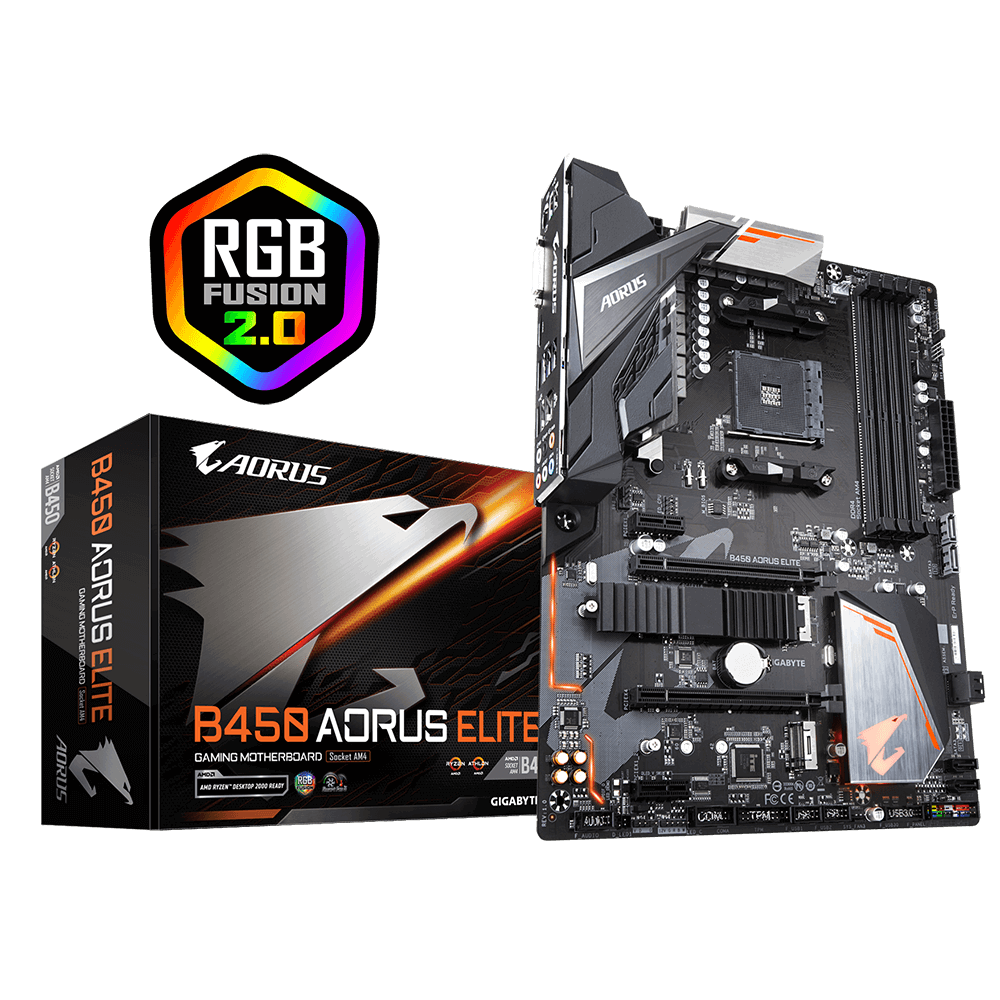

Gigabyte B450 AORUS ELITE AMD Motherboard

Check if the product is available for delivery to your location

Share

AMD B450 AORUS Motherboard with Hybrid Digital PWM, Dual M.2 with One Thermal Guard, RGB FUSION 2.0, GIGABYTE Gaming LAN with Bandwidth Management, CEC 2019 ready.

Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
HDMI, DVI-D Ports for Multiple Display
Integrated I/O Shield of Ultra Durable Design
Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune and Cloud Station Utilities

Technical Specifications

Brand	Gigabyte
Model Name	AORUS ELITE AMD Motherboard
Model No.	B450 AORUS ELITE AMD
CPU Support	AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset	AMD B450
Memory	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory, Dual channel memory architecture, Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
Graphic	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60(Note) Hz * Support for HDMI 2.0 version and HDCP 2.2.
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 2 x PCI Express x1 slots
Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET), 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10
LAN	Realtek GbE LAN chip (10/100/1000 Mbit)
Audio	Realtek ALC892 codec, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
USB Ports	Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header, 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers), Integrated in the APU: 4 x USB 3.1 Gen 1 ports on the back panel
Special Features	Support for APP Center, Support for Q-Flash, Support for Xpress Install

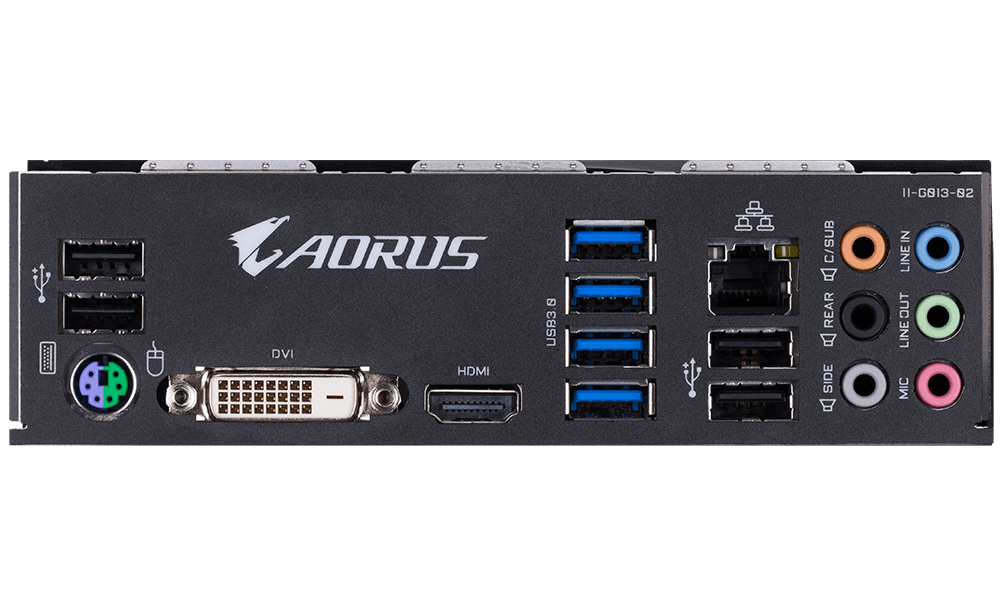

Back I/O Ports	1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 6 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 2 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x CPU fan header, 3 x system fan headers, 1 x CPU cooler LED strip/RGB LED strip extension cable header, 1 x RGB (RGBW) LED strip header, 2 x digital LED strip headers, 2 x digital LED strip power select jumpers, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only), 1 x serial port header, 1 x Clear CMOS jumper
Operating System Support	Support for Windows 10 64-bit, Support for Windows 7 64-bit
Form Factor	ATX Form Factor; 30.5cm x 23.5cm
