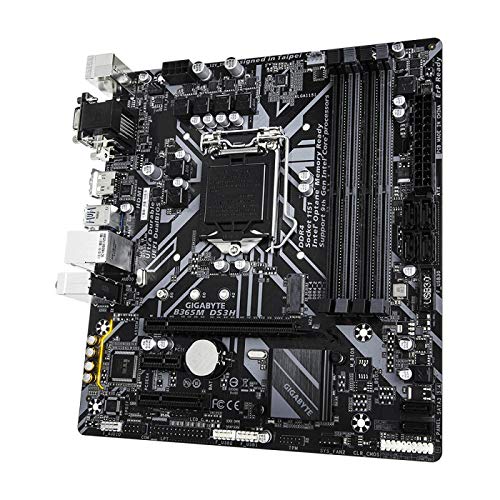

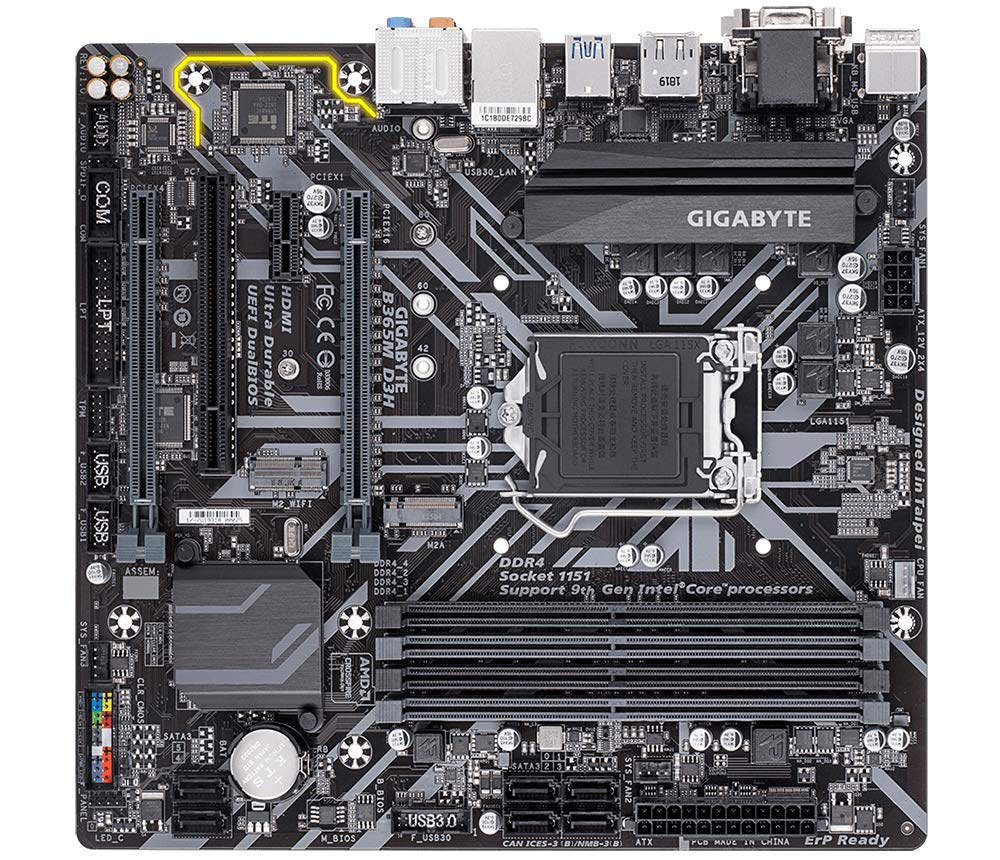

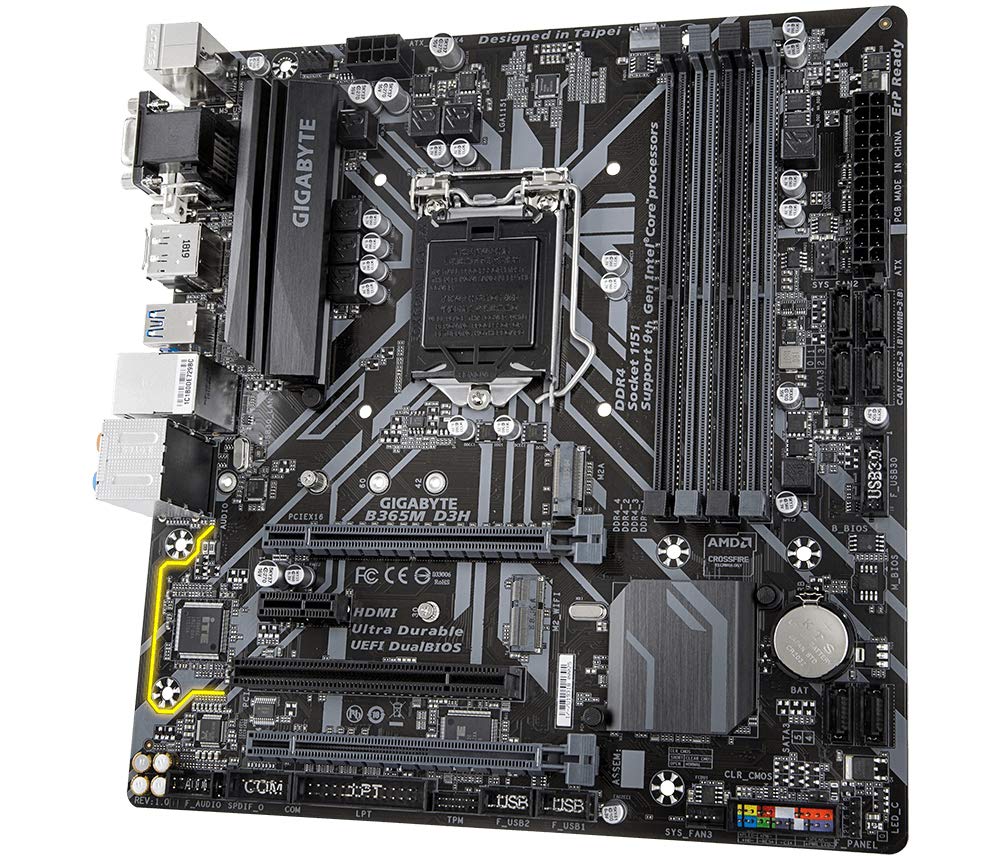

Gigabyte B365M D3H Wifi Motherboard

Check if the product is available for delivery to your location

Share

Gigabyte B365MD3H Ultra Durable Motherboard with PCIe Gen3 x4 M.2, Intel GbE LAN with 25KV Protection, 7 Colors RGB LED Strips Support, Anti-Sulfur Resistor, Smart Fan5.

B365M D3H, LGA1151, Intel B365 Express, 4x DDDR4 DIMM, VGA, DVI-D, DP, HDMI, LAN, M.2, SATA III, PS/2, USB 3.1 C, USB 3.1, Micro ATX, 244x230 mm NVMe PCIe Gen3 x4 22110 M.2 Connector (Up to 32 Gb/s) GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Technical Specifications

Brand	Gigabyte
Model Name	Gigabyte B365MD3H
CPU Support	Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel® Pentium® processors/Intel® Celeron processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel B365 Express Chipset
Memory	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor.
Graphic	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
LAN	Intel GbE LAN chip (10/100/1000 Mbit)
Audio	Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
USB Ports	1 x USB Type-C port on the back panel, with USB 3.1 Gen 1 support 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 1 x USB Type-C™ port, with USB 3.1 Gen 1 support 3 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
Operating System Support	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 23.0cm
Warranty	3 Years
