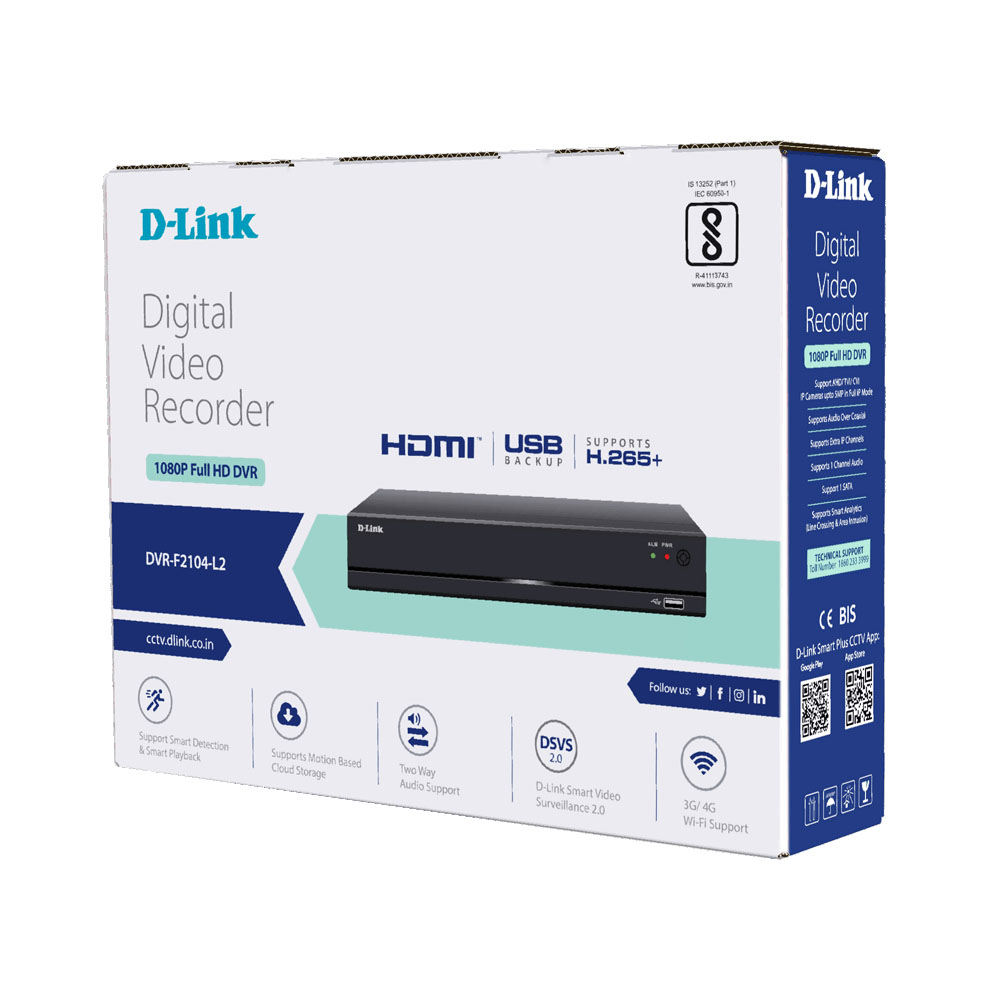

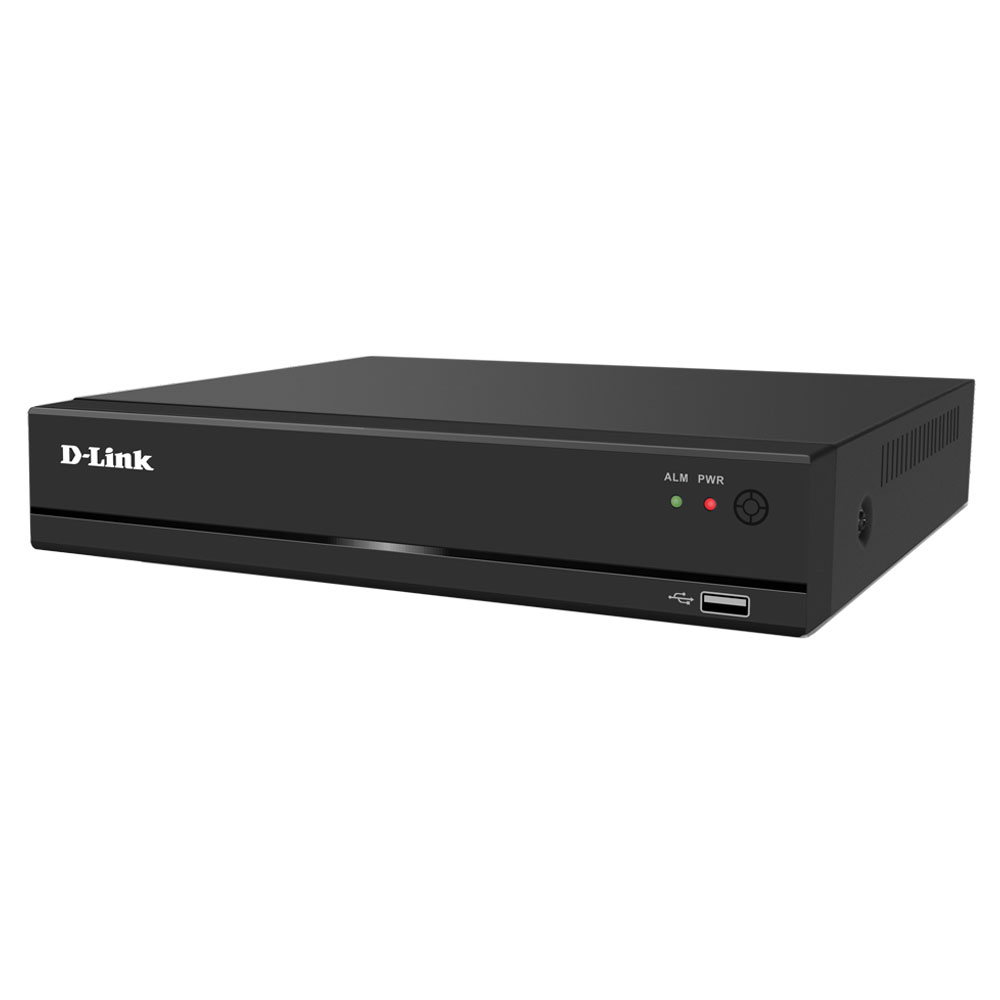

Dlink DVR-F2104-L2 4CH, 1 SATA H.265+ DVR

Availablity:In stock

Wishlist Compare

₹4,664.00

Quantity:

Check if the product is available for delivery to your location

Share

Dlink DVR-F2104-L2 4CH, 1 SATA H.265+ DVR.

4CH, 1 SATA H.265+ DVR

4 CH, 1SATA
Support AHD/TVI/CVI/IP Cameras
Support AHD/TVI Cameras upto 5MP
Support Extra IP Channels
Support H.265+/H.265/H.264+/H.264
Support Time Division & Instant Playback
Support Cloud storage
Support Event stream

Technical Specifications

Brand	Dlink
Model No	DVR-F2104-L2
Model Name	4CH, 1 SATA H.265+ DVR
Video Input	4ch BNC interface (1.0Vp-p, 75 ?)
TVI / CVI /AHD	5MP,4MP,1080P, 720P: CVI : 4MP,1080P,720P
IPC	Extra 2CH 2MP in default mode; Up to 5MP in full IP mode
Audio Input	1-ch, RCA (2.0 Vp-p, 1 K?)
Two way Talk	1-ch, multiplex with Audio Input (RCA)
HDMI	1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz
VGA	1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/ 60Hz
CVBS output	1-ch,BNC(1.0Vp-p,75?),resolution:PAL:704x576,NTSC:704x480
Audio Output	1-ch, RCA (Linear, 1k?)
Compression	H.265+/H.265/H.264+/H.264
Resolution	4ch 5MP Lite@12fps; 4ch 4MP Lite/1080P@15fps; 1080P Lite@25fps 720P/960H/D1/CIF real time
Frame Rate(fps)	1-25fps(P)/30fps(N)
Video Bit Rate	11Kbps-4096Kbps
Record Mode	Manual, Schedule, Alarm
Audio Compression	G.711a
Audio Bit Rate	64Kbps
Playback Mode	Normal/Time Division/ Label/ Event/ Picture Playback
Playback Rate	4ch Playback
Backup Mode	USB Device/Network
Cloud Storage/Upgrade	Support
Ethernet	1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
Network Function	HTTPs, HTTP,TCP/IP,IPv4,UPnP,Onvif 2.6,RTSP,RTCP, UDP, SMTP,SNMP,Multicast,IGMP,NTP, DHCP,DNS,DDNS, FTP, P2P
Smart Phone	IOS (iPhone, iPad), Android (Phone, Pad)
SATA	1 HDD
Capacity	Up to 8TB capacity for each HDD
Serial Interface	NA
USB Interface	2 × USB
Power Supply	DC12V, 1.5A
Power Consumption	?15W (without HDD)
Dimension	250 x 230 x 45mm
Weight	1.5kg
Mobile Software	D-Link Smart Plus CCTV App
Desktop Software	D-Link Smart Video Surveillance 2.0
System Requirement for Web Interface	IE
Warranty	5 Year
