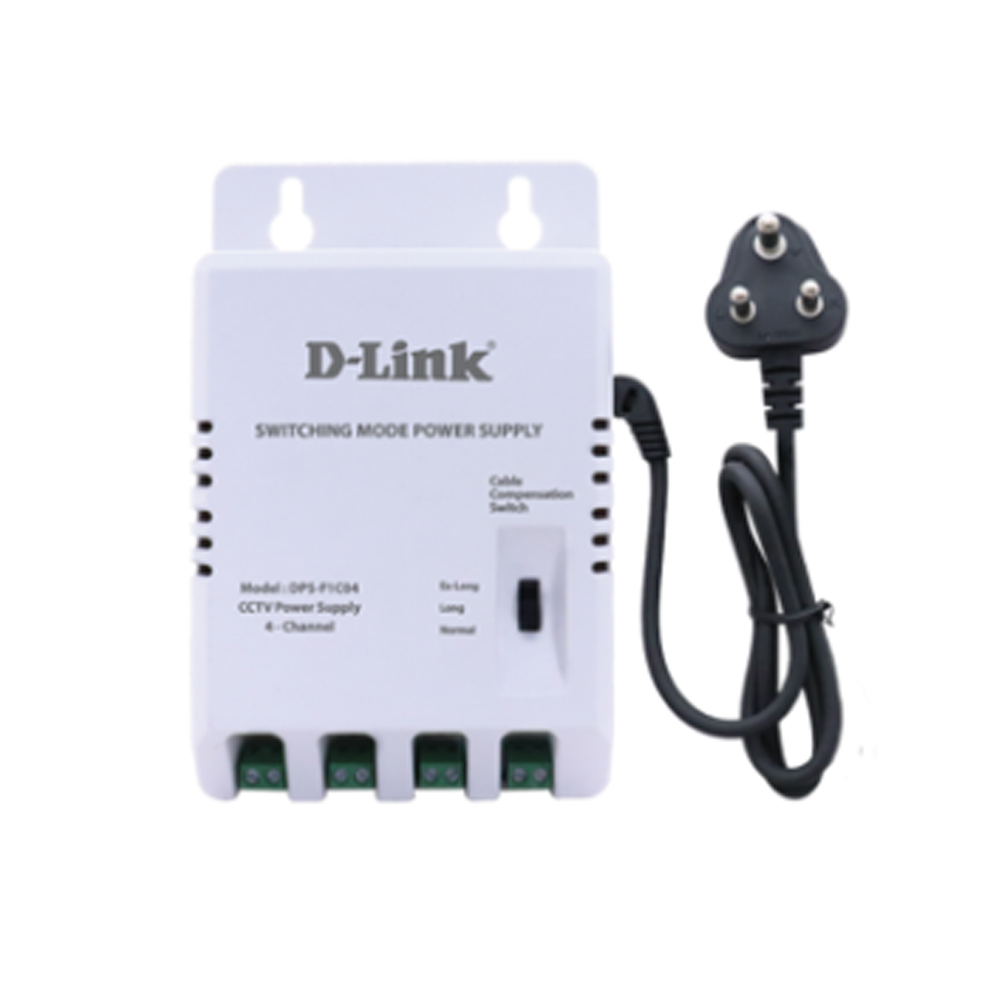

Dlink DPS-F1C04 4CH CCTV Power Supply
Availablity:In stock
₹1,274.00
Check if the product is available for delivery to your location
Dlink DPS-F1C04 4CH CCTV Power Supply.
4CH CCTV Power Supply
- Highly Efficient & Consumes Low Power
- Stabilized Output, Low Interference, Surge Protected
- LED Indicators for each channel
- In-built power cord with 3 Pin Plug
- Highly Integrated SMPS Switcher IC Design
- Insulated Cabinet Protection
- Short Circuit Auto Restart
- Input Voltage-100VAC-300VAC 50/60Hz
- Output Voltage - 12V- 1 AMP max per channel.
Technical Specifications
| Brand | Dlink |
| Model No | DPS-F1C04 |
| Model Name | 4CH CCTV Power Supply |
| Input Voltage Range | 110VAC~300VAC |
| Frequency | 50Hz - 60Hz |
| Output Voltage | 12V±5% |
| Line Regulation | ?5% |
| Setup Rise time | ?5S |
| Hold up time | 10ms |
| Inrush current | < 50A |
| Leakage Current | <0.25mA |
| Auto Reset | Yes |
| Input Overvoltage Protection | The power supply is withstanding upto 330VAC, without Interrupting |
| Over Load Protection | Auto restart |
| Ripple | ?80mV |
| Surge protection | 3.5 KV |
| Efficiency | ?80% |
| Housing | ABS white Plastic |
| Store Temperature | -20?~ +80? |
| Working Humidity | 10 ~ 90% |
| Working Temperature | 0?~ +50 |
| Warranty | 2 Years |
