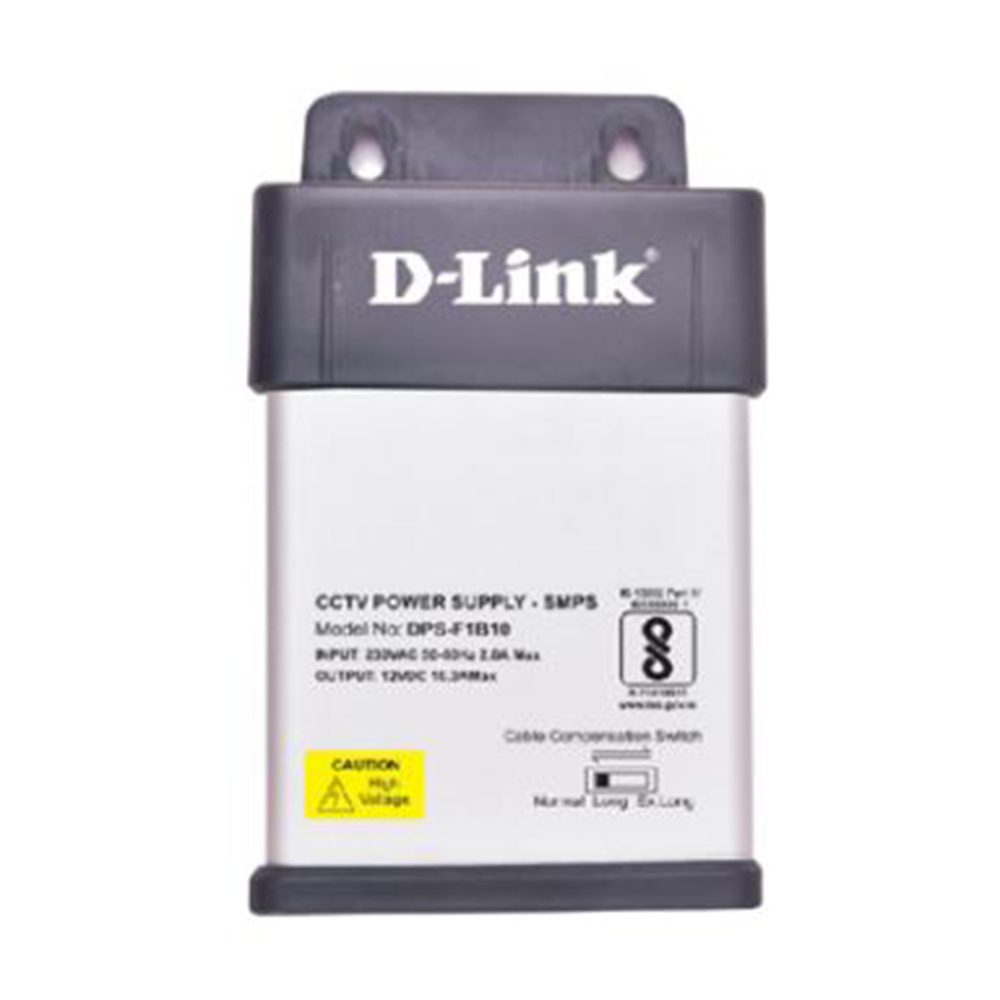

Dlink DPS-F1B10 8CH CCTV Single Output 10APower Supply

Availablity:In stock

₹1,053.00



Check if the product is available for delivery to your location


Share


Dlink DPS-F1B10 8CH CCTV Single Output 10APower Supply.

8CH CCTV Power Supply

  • Metal Case Power Supply
  • Surge Protection provided
  • Stabilized Output with Low Interference
  • Overload & Short Circuit Protection
  • Thermal protected auto restart
  • LED Indicator to indicate Power ON
  • Output Voltage 12V - 10A
  • Input Voltage-180VAC-264VAC 50/60Hz

Technical Specifications

Brand Dlink
Model No DPS-F1B10
Model Name 8CH CCTV Single Output 10APower Supply
Input Voltage Range 180~264VAC
Frequency 50Hz - 60Hz
Output Voltage 12V DC
Line Regulation ±1;0%
Setup Rise time 600ms, 30ms at full load
Hold up time 13ms at full load
Inrush current 50A
Leakage Current 2mA / 240VAC
Auto Reset Yes
Input Overvoltage Protection The power supply is withstanding upto 330VAC, without Interrupting
Over Load Protection Auto restart
Ripple 80mV
Surge protection 3.5 KV
Efficiency 84%
Housing Metal Case
Store Temperature -20~ +80
Working Humidity 20 ~ 90% RH Non-condensing
Working Temperature -20~+40
Warranty 2 Years
