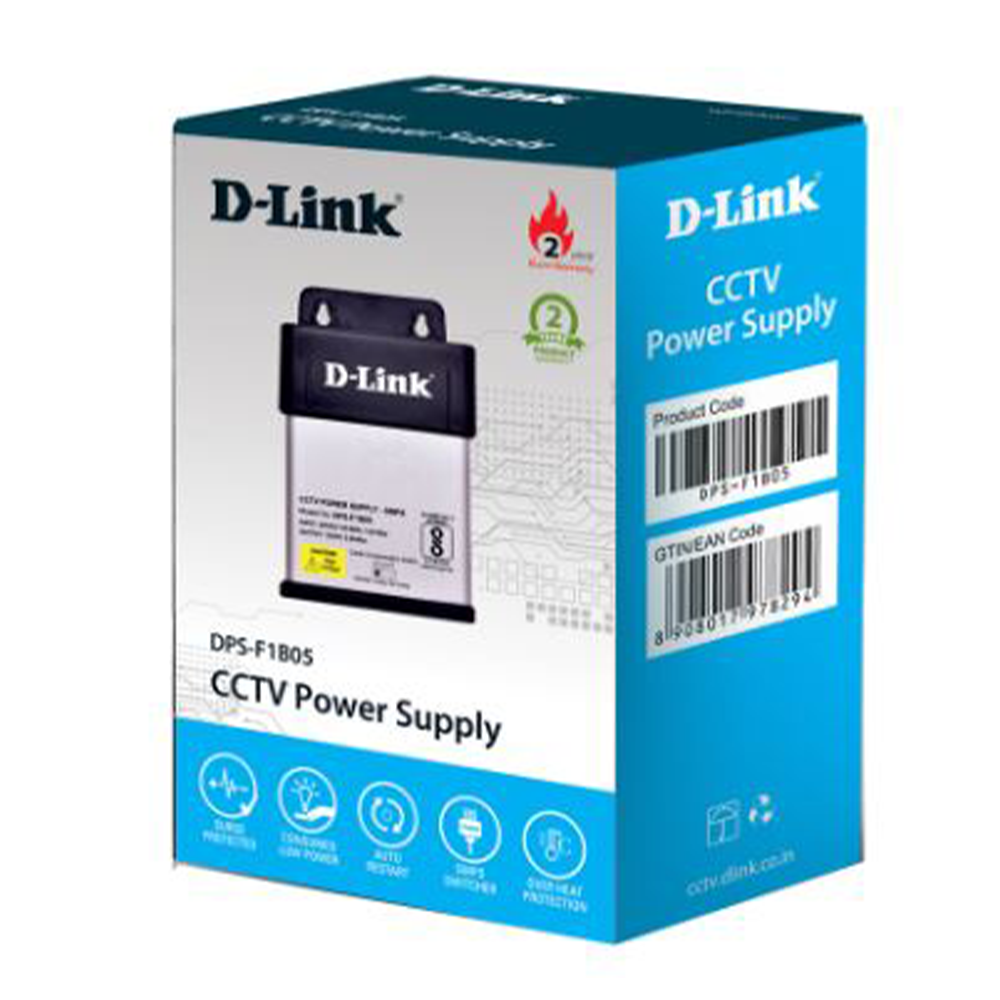

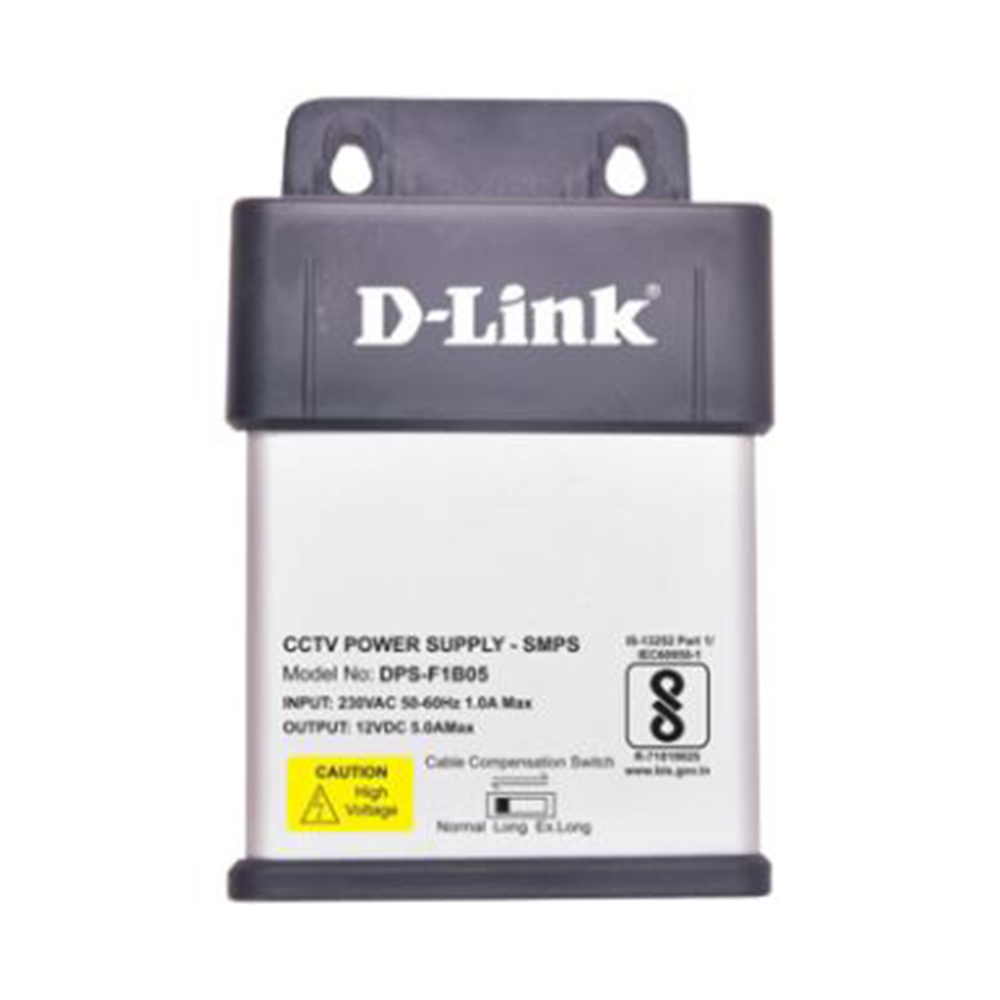

Dlink DPS-F1B05 4CH CCTV Single Output 5APower Supply
Availablity:In stock
₹752.00
Check if the product is available for delivery to your location
Dlink DPS-F1B05 4CH CCTV Single Output 5APower Supply.
4CH CCTV Power Supply
- Metal Case Power Supply
- Surge Protection provided
- Stabilized Output with Low Interference
- Overload & Short Circuit Protection
- Thermal protected auto restart
- LED Indicator to indicate Power ON
- Output Voltage 12V - 5A
- Input Voltage-180VAC-264VAC 50/60Hz
Technical Specifications
| Brand | Dlink |
| Model No | DPS-F1B05 |
| Model Name | 4CH CCTV Single Output 5APower Supply |
| Input Voltage Range | 180~264VAC |
| Frequency | 50Hz - 60Hz |
| Output Voltage | 12V DC |
| Line Regulation | ±1;0% |
| Setup Rise time | 600ms, 30ms at full load |
| Hold up time | 13ms at full load |
| Inrush current | 50A |
| Leakage Current | 2mA / 240VAC |
| Auto Reset | Yes |
| Input Overvoltage Protection | The power supply is withstanding upto 330VAC, without Interrupting |
| Over Load Protection | Auto restart |
| Ripple | 80mV |
| Surge protection | 3.5 KV |
| Efficiency | 80% |
| Housing | Metal Case |
| Store Temperature | -20~ +80 |
| Working Humidity | 20 ~ 90% RH Non-condensing |
| Working Temperature | -20~+40 |
| Warranty | 2 Years |
