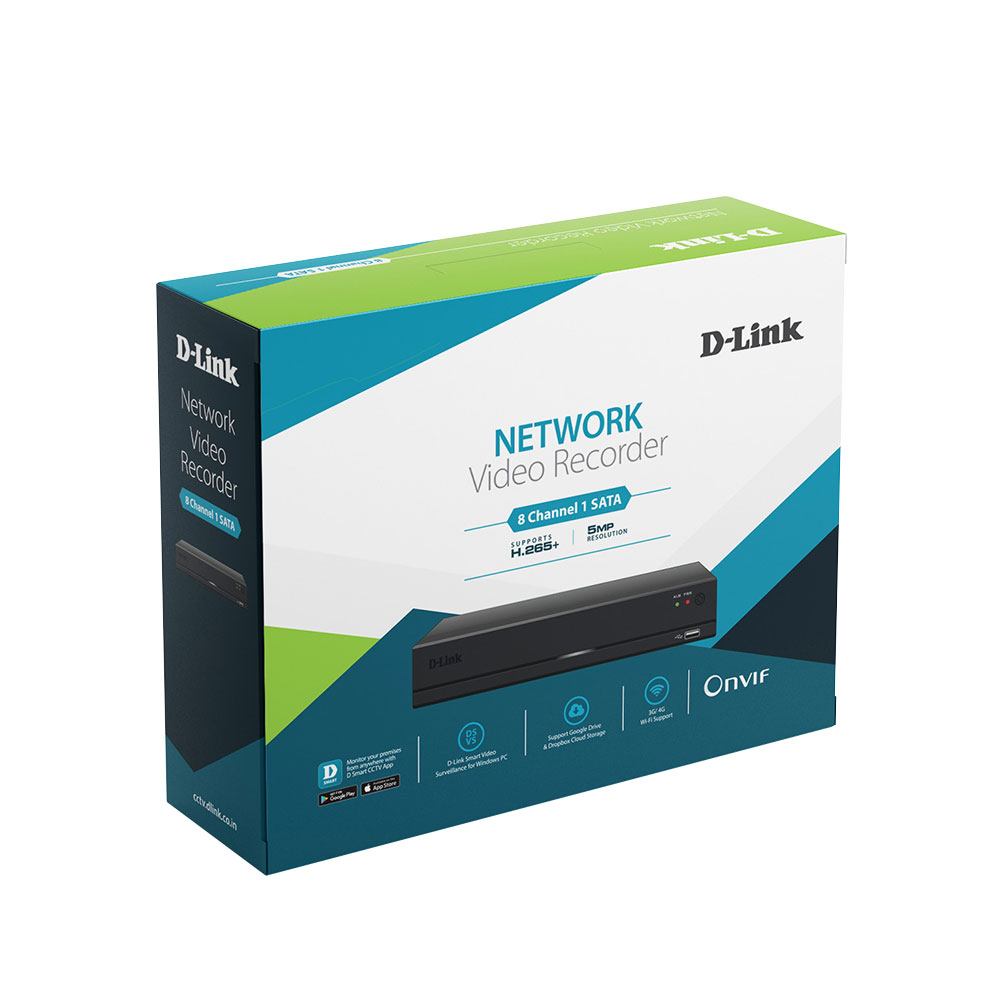

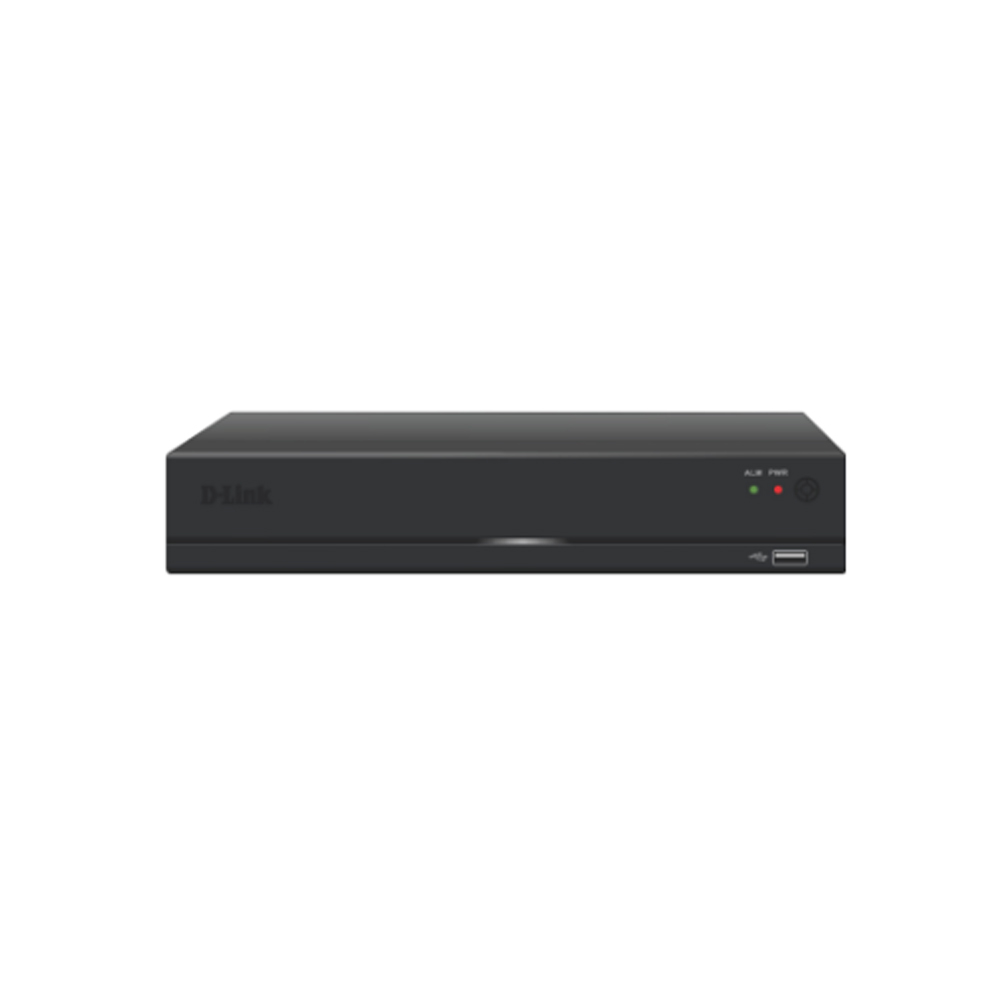

Dlink DNR-F5108-M5 8CH, 1 SATA H.265+ NVR
Availablity:In stock
₹4,631.00
Check if the product is available for delivery to your location
Dlink DNR-F5108-M5 8CH, 1 SATA H.265+ NVR.
- 8CH, 1 SATA NVR
- Support up to 5MP IPC
- Support H.265+/H.265/H.264+/H.264
- Support Smart Playback & Analytics
- Support 3G/4G Wi-Fi Connectivity
- Support Google Drive & Dropbox Cloud storage
- Support Onvif 2.6
Technical Specifications
| Brand | Dlink |
| Model No | DNR-F5108-M5 |
| Model Name | 8CH, 1 SATA H.265+ NVR |
| IP Video Input | 8ch |
| HDMI | 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz |
| VGA | 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz |
| Compression | H.265+/H.265 /H.264+/H.264 |
| Resolution | 5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF |
| Playback Mode | Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback |
| Decoding Capability | 4CH@1080P(25fps) |
| Backup Mode | USB Device/Network |
| Smart Detection | Line crossing, Area Intrusion, Fast moving, Unattached Object, Object Missing |
| Smart Playback | Line Crossing/Area Intrusion /Motion Detection |
| Cloud Storage | Support |
| Cloud Upgrade | Support |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 20Mbps |
| Ethernet | 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface |
| Network Compatibility | HTTP, HTTPS, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, DDNS, FTP, P2P, ONVIF 2.6 |
| Smart Phone | IOS (iPhone, iPad), Android (Phone, Pad) |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB capacity for each HDD |
| USB Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 |
| Power Supply | DC12V/1.5A |
| Power Consumption | 10W (without HDD) |
| Dimension | 250x230x45mm |
| Weight | 1.5Kg |
| Mobile Software | D-Link Smart CCTV App |
| Desktop Software | DSVS (D-Link Smart Video Surveillance) |
| System Requirement for Web Interface | IE |
