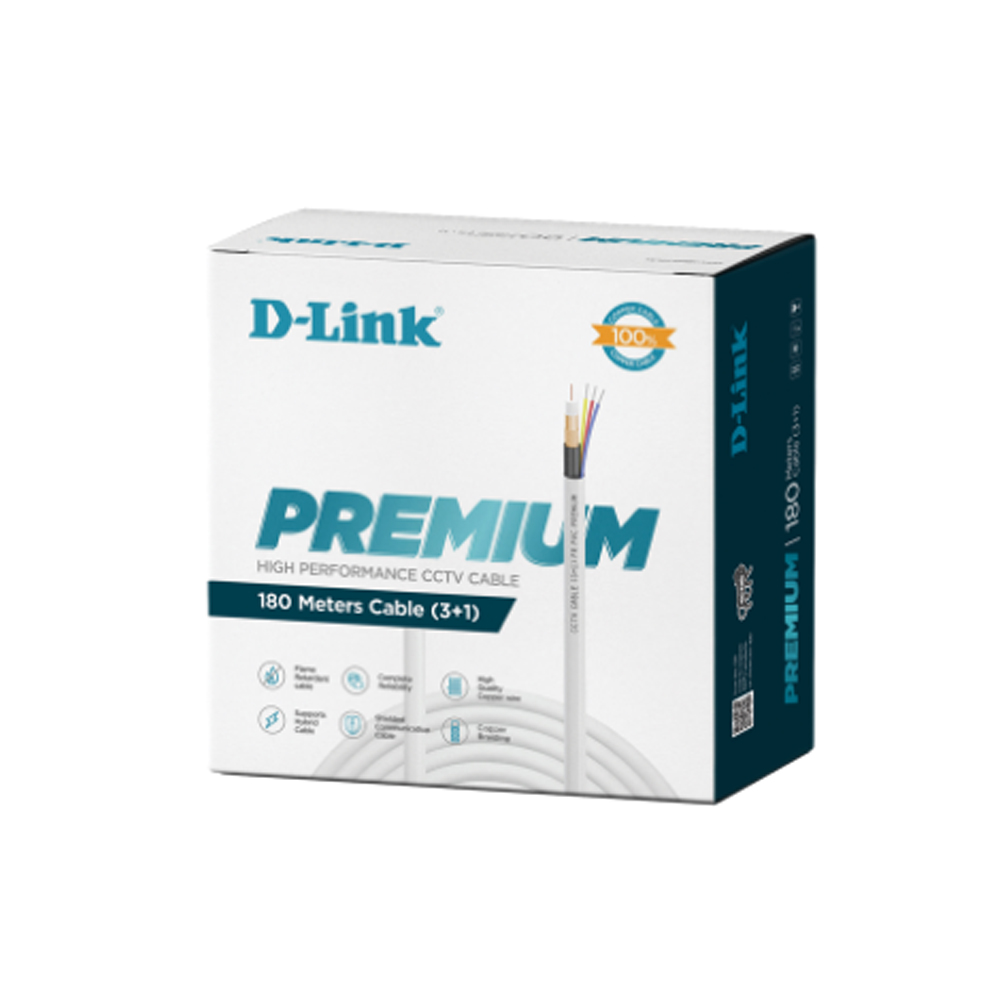

Dlink DCC-WHI-180 180(3+1) Premium CCTV cable
Availablity:In stock
₹3,049.00
Check if the product is available for delivery to your location
Dlink DCC-WHI-180 180(3+1) Premium CCTV cable.
- Copper Bradding.
- Flame Retardant cable.
- Supports Hybrid cable.
Technical Specifications
| Brand | Dlink |
| Model No | DCC-WHI-180 |
| Model Name | 180(3+1) Premium CCTV cable |
| Color & Material of Outer Sheath | FR PVC_White (IEC 60332-1) |
| Cable Diameter (Oval) | 5.77 +/-0.3mm |
| Jacket Thickness | 0.70 + /- 0.2mm |
| Inner Conductor | Copper |
| No. of Conductors | 1 |
| Dielectric | Solid PE |
| Color | Natural |
| Diameter | 1.31+/ -0.2mm |
| Thickness | 0.40+/- 0.2mm |
| Shield | (Copper colour Aluminum Myler tape) |
| Shield - Braiding | Copper braiding |
| Dia. of Braid Wire | 0.09 +/- 0.02mm |
| No. of Braiding Wires | 48 |
| Coax jacket | PVC Type ST1 |
| Colour | Black |
| Thickness | 0.40 +/ - 0.02mm |
| III) Insulated Cores | Type A |
| Core Colour | Red, Yellow, Grey |
| No. of Strands | 14 |
| Strand Diameter | 0.1+/- 0.02mm |
| Insulation | PVC Type A |
| Thickness (Average) | 0.40 +/- 0.02mm |
| Diameter (Average) | 1.18+/- 0.2mm |
