Dlink DCC-CAL-180-3F 180 Meter 3+1 Standard CCTV cable Fire Retardant with Alloy Braiding & Foamed Conductor
180m Standard CCTV cable with Alloy Braiding & Foamed ConductorDCC-CAL-180-3F

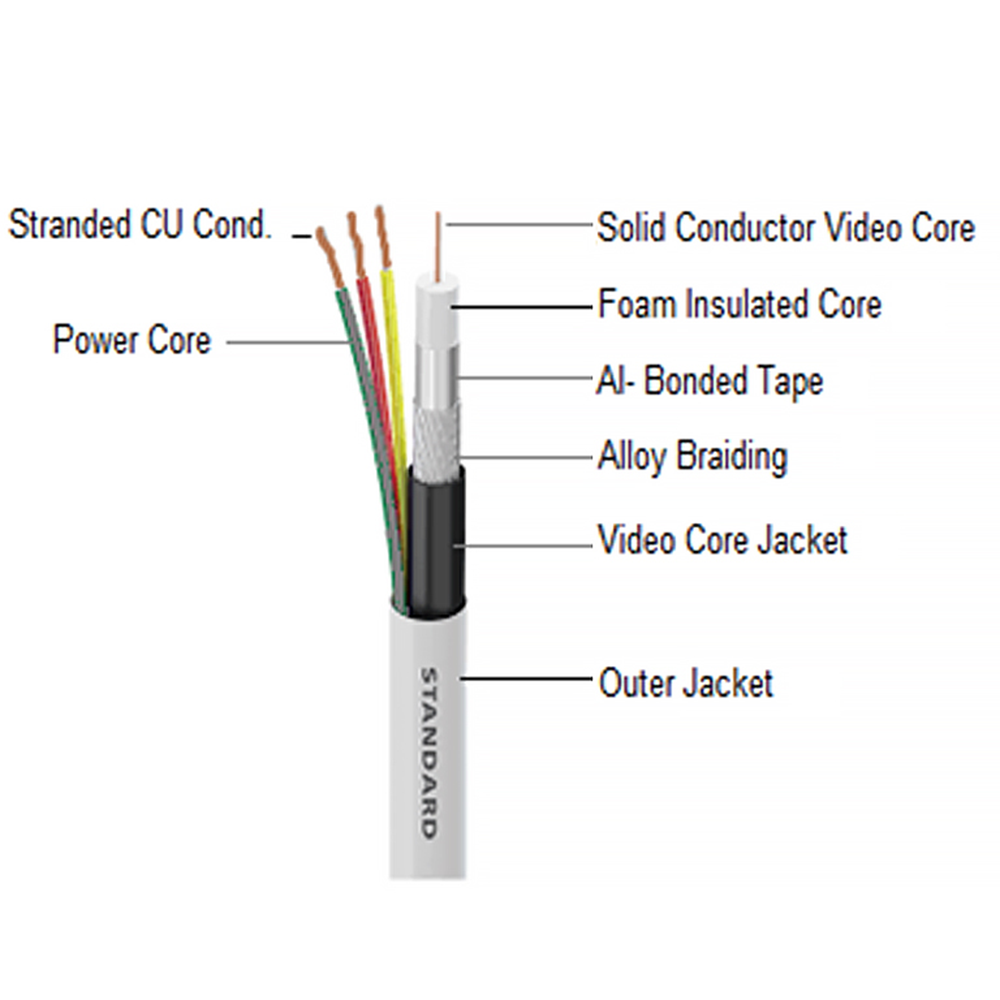

DCC-CAL-180-3F is an Aluminium Alloy braiding CCTV cable. This CCTV 3+1 construction cable is of hybrid type with combination of Communication and Electrical conductors. The 3 power cores enables powering of the CCTV camera while the communication cable(Video Core) enables recording of images and communicating with control Room devices.
• Flame Retardant Cable
• Complete Reliability
• Foamed PE Insulation
• High Quality Copper wire for Video & Power Core
• Supports Hybrid Cable
• Shielded Communication Cable
• Aluminium Alloy Braiding
• Al-Bonded Tape
Technical Specifications
| Brand | Dlink |
| Model No | DCC-CAL-180-3F |
| Model Name | 180(3+1) Premium CCTV cable |
| Color & Material of Outer Sheath | FR PVC_White (IEC 60332-1) |
| Cable Diameter (Oval) | 6.100+ / -0.4mm |
| Jacket Thickness | 0.60+ / -0.2mm |
| Inner Conductor | Copper |
| No. of Conductors | 1 |
| Dielectric | Foamed PE |
| Color | Natural |
| Diameter | 2.00+ / -0.01 mm |
| Thickness | 0.80mm |
| Shield | Copper Foil Al-Mylar |
| Shield - Braiding | Al-Mg Alloy Braiding |
| Dia. of Braid Wire | 0.12 +/- 0.02mm |
| No. of Braiding Wires | 48 |
| Coax jacket | PVC Type |
| Colour | Black |
| Thickness | 0.40mm |
| III) Insulated Cores | PVC |
| Core Colour | Red, Yellow, Grey |
| No. of Strands | 14 |
| Strand Diameter | 0.1+/- 0.02mm |
| Insulation | PVC |
| Thickness (Average) | 0.40mm |
| Diameter (Average) | 1.25+ / -0.2mm |
