Bosch LC3-UM06-IN, 6W, ABS Ceiling Speaker, White

Availablity:In stock

₹1,277.00



Check if the product is available for delivery to your location


Share

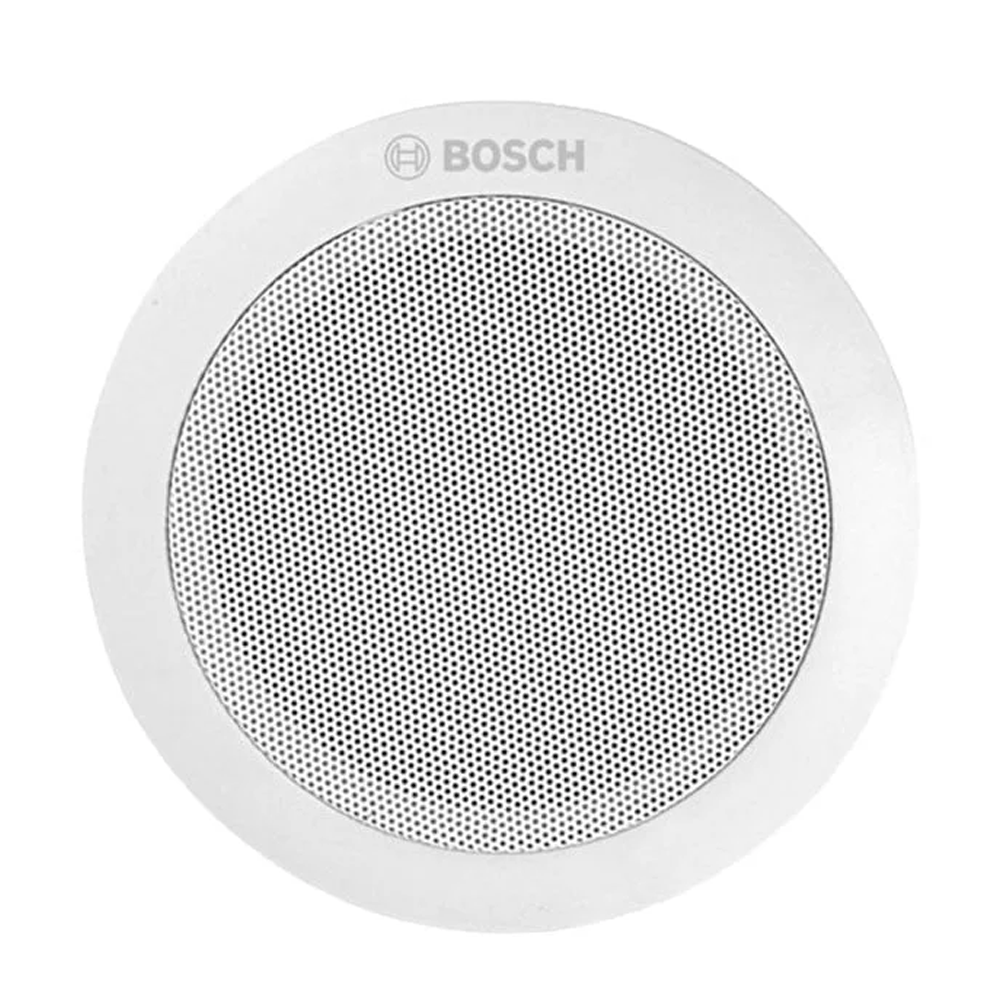

Bosch LC3-UM06-IN Ceiling Loudspeaker

  • Available in 6 W power output
  • Lightweight construction
  • Excellent for speech and music reproduction
  • Available in attractive signal-white color

BOSCH LC3-UM06-IN – 6W Compact Metal Ceiling Speaker is a general purpose 6 W ceiling loudspeaker, suitable for speech as well as music reproduction, it has a light weight ABS body with a metallic grille, finished with an attractive signal-white color.

The ceiling speaker unit is integrated with a metallic grille and an ABS baffle, resulting in a light weight construction and is finished in an attractive signal white color.

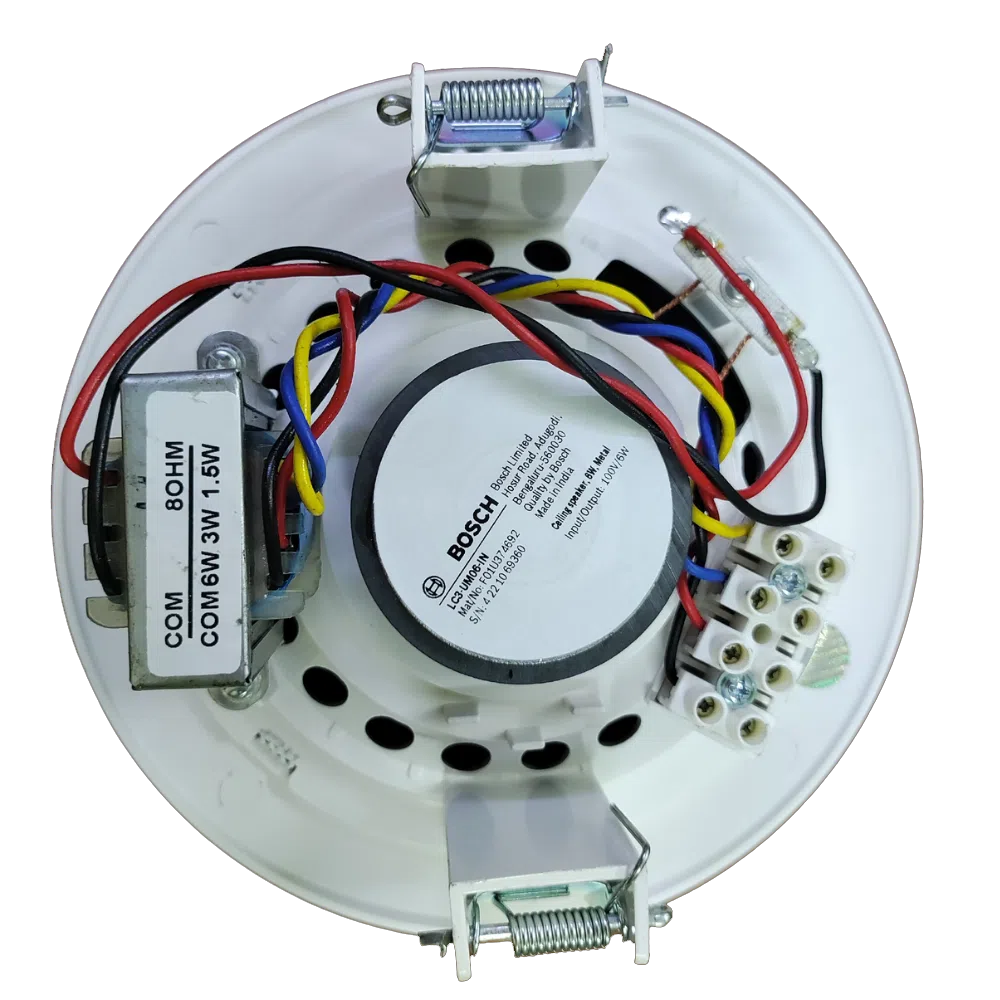

The loudspeaker has good sensitivity and a wide frequency range, which makes it suitable for speech and music reproduction. It has an in-built line matching transformer, which supports a 100 V line output from the amplifier. The transformer has 3-tappings – full power, half power and quarter power, which helps the user to select the desired output levels based on their customized requirements.

The loudspeaker is equipped with spring mounting mechanism, which helps in quick installation of the speaker on the ceiling

BOSCH LC3-UM06-IN – 6W Compact Metal Ceiling Speaker unit has a diameter of 170 mm. A cutout of 139 mm diameter needs to be carved out in the ceiling for installation.

The loudspeaker can be installed by pulling up the mounting clamps and inserting the loudspeaker into the cutout in the ceiling.

Technical Specifications

Manufacturer Bosch
Brand Bosch
Model No LC3-UM06-IN
Generic Name Ceiling Speaker
Size 4 Inch
Maximum Power 9W
Rated Power 6W
Input Voltage 100 V
Mount Position Ceiling
Load Capacity 350 g
Sound Pressure Level at 6 W / 1 W ( 1 KHz at 1m) 92/85 dB
Effective Frequency Range (-10 dB) 75 Hz to 18 kHz
Opening Angle at 1 KHz / 4 KHz (-6 dB) 180°/65°
Rated Input Voltage 100 V
Rated Impedance 1667 ohm
Diameter 170 mm
Power Tapping 6/3/1.5W
Operating Temperature -5 °C to +55 °C
Storage Temperature -40 °C to +70 °C
Relative Humidity 95%
Connector 4-pole screw connector
Material Metal
Color White
Weight 550 g
Product Dimension 20x20x10 cm
Warranty 1 Year
