Bosch LC1-PC30G6-6-IN, 30W, Premium Sound Ceiling Loudspeaker, White

Availablity:In stock

Wishlist Compare

₹5,148.00

Quantity:

Check if the product is available for delivery to your location

Share

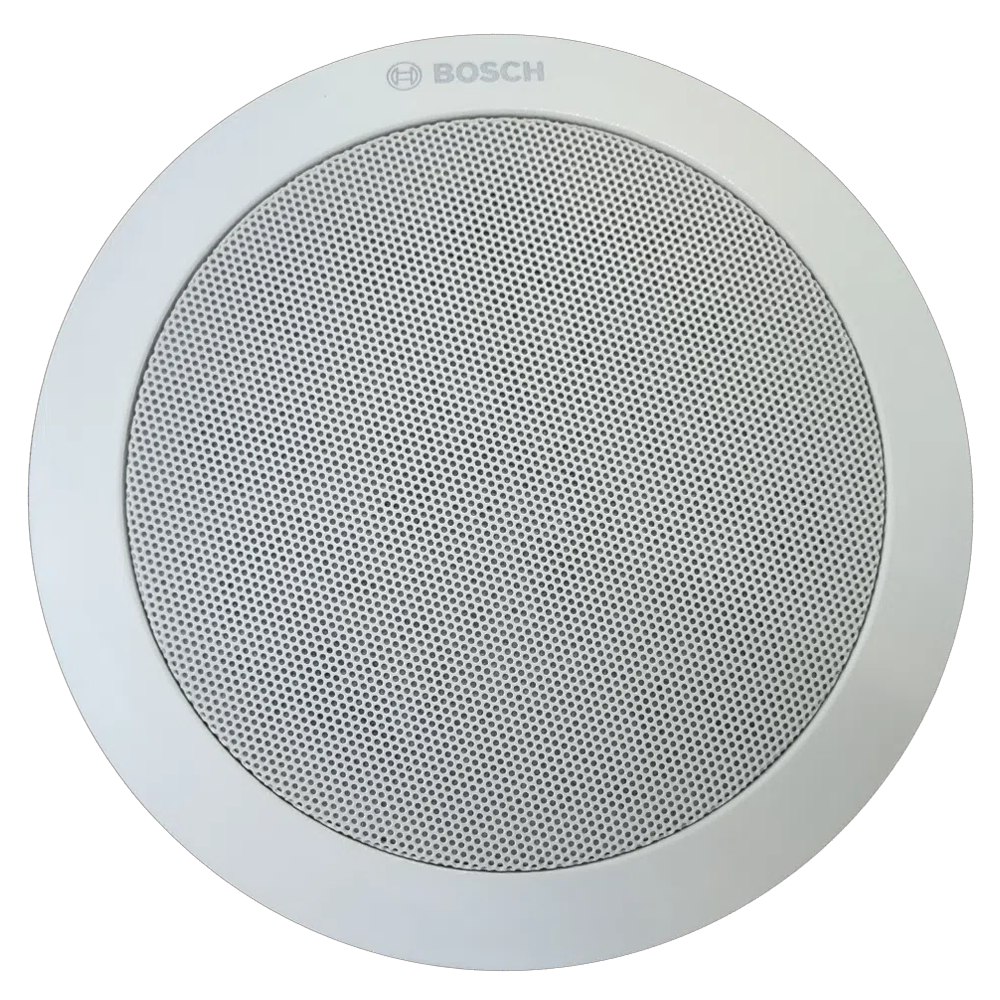

LC1-PC30G6-6-IN Premium Sound Ceiling Loudspeaker 30 W

Excellent sound reproduction

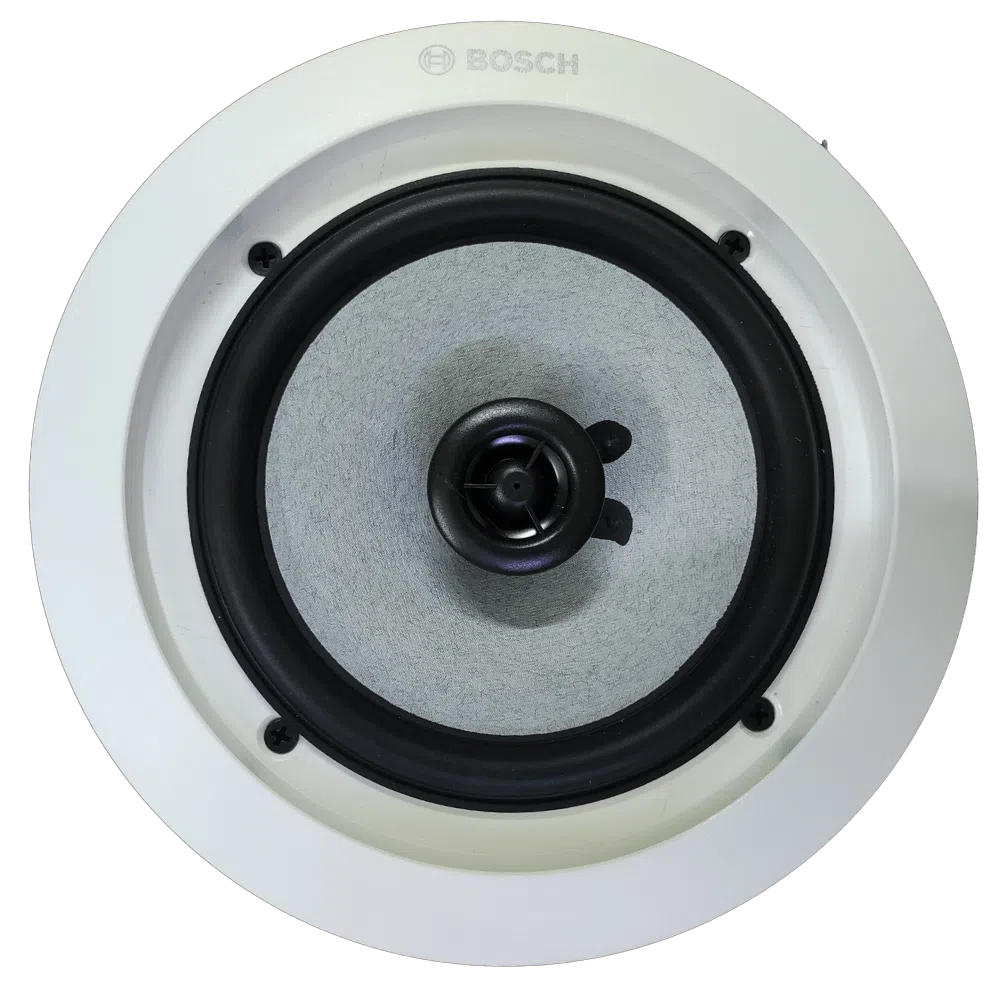

Co-axial full-range speaker with poly cone tweeter
Easy to install
Simple power tappings at full, half and quarter power
Tested for PHC with 100 hr continuous operation as per IEC60268-1&5

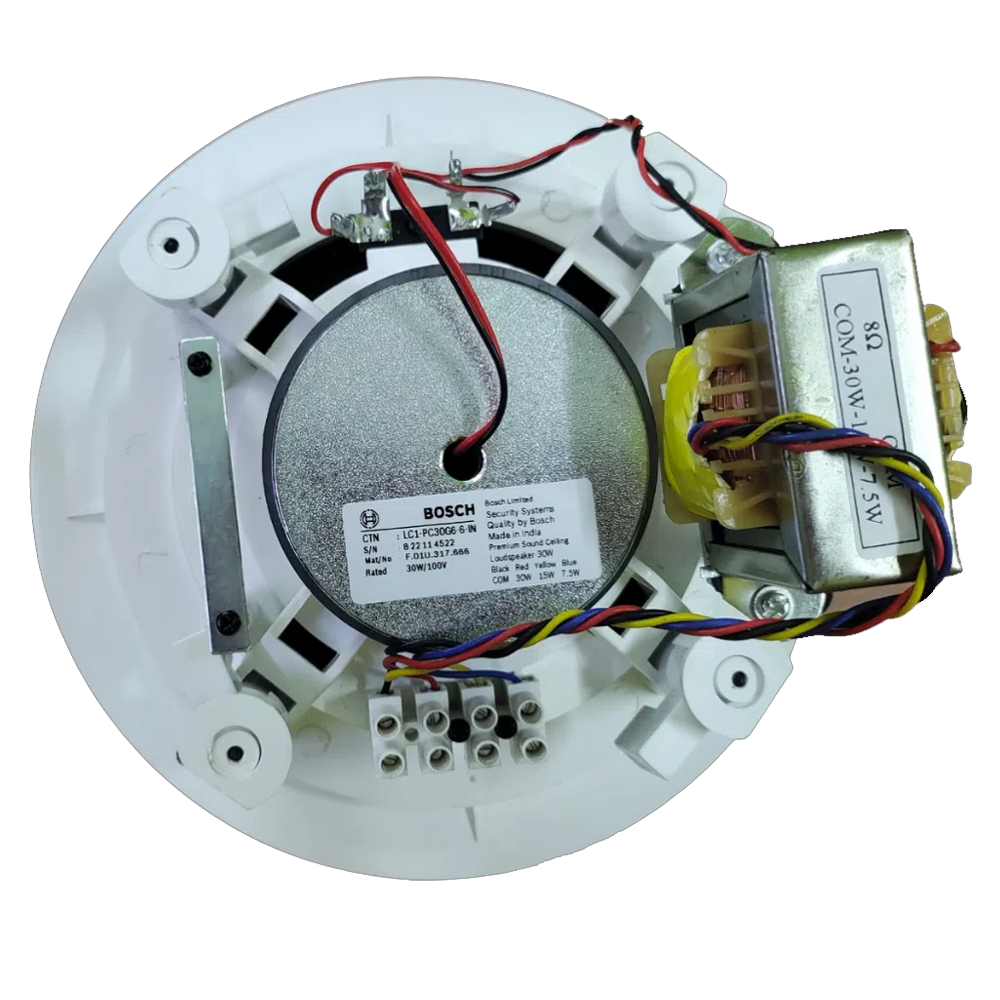

The LC1-PC30G6-6-IN is a high-efficiency, coaxial full-range dual cone premium ceiling loudspeaker providing excellent speech and music reproduction. This ceiling speaker gives sound distribution for a wide scope of ceiling mounted applications. These are ideal for hotels, restaurants, shopping centers, convention centers, office buildings, etc. where both speaker and music reproduction of high quality is required.The LC1-PC30G6-6-IN is a circular shaped, ABS material ceiling loudspeaker and has full-range performance in the bandwidth of 70 Hz to 20 kHz. It comes with a poly cone tweeter for enhanced performance. The speaker has a line matching transformer to connect to a 100V output from an amplifier. The loudspeaker has power tappings at full power (30W), half power (15W), and quarter power (7.5W) to connect at different power levels.

Technical Specifications

Manufacturer	Bosch
Brand	Bosch
Model No	LC1-PC30G6-6-IN
Generic Name	Ceiling Speaker
Maximum Power	45 W
Rated Power	30 W
Mount Type	Ceiling
Rotatable Power taps at 100 V	30 W - 15 W - 7.5 W
Sound Pressure Level at 6 W / 1 W ( 1 KHz at 1m)	90 dB (+-3 dB)
Effective Frequency Range (-10 dB)	70 Hz to 20 kHz
Opening Angle at 1 KHz / 4 KHz (-6 dB)	1 K : > 180 2 K : 173 4 K : 75 8 K : 57
Rated Input Voltage	100 V
Rated impedance at Rated Power	333 / 666 / 1333 Ohm
Driver/Speaker Diameter	5 in / 8 in
Safety	Refer to EN 60065
Tweeter	1/2 inch poly cone
Connection	Screw terminal connector(ABS)
Material	Metal
Color	White
Weight	1.6 kg
Product Dimension	52 x 0.2 x 0.5 cm
Warranty	1 Year
