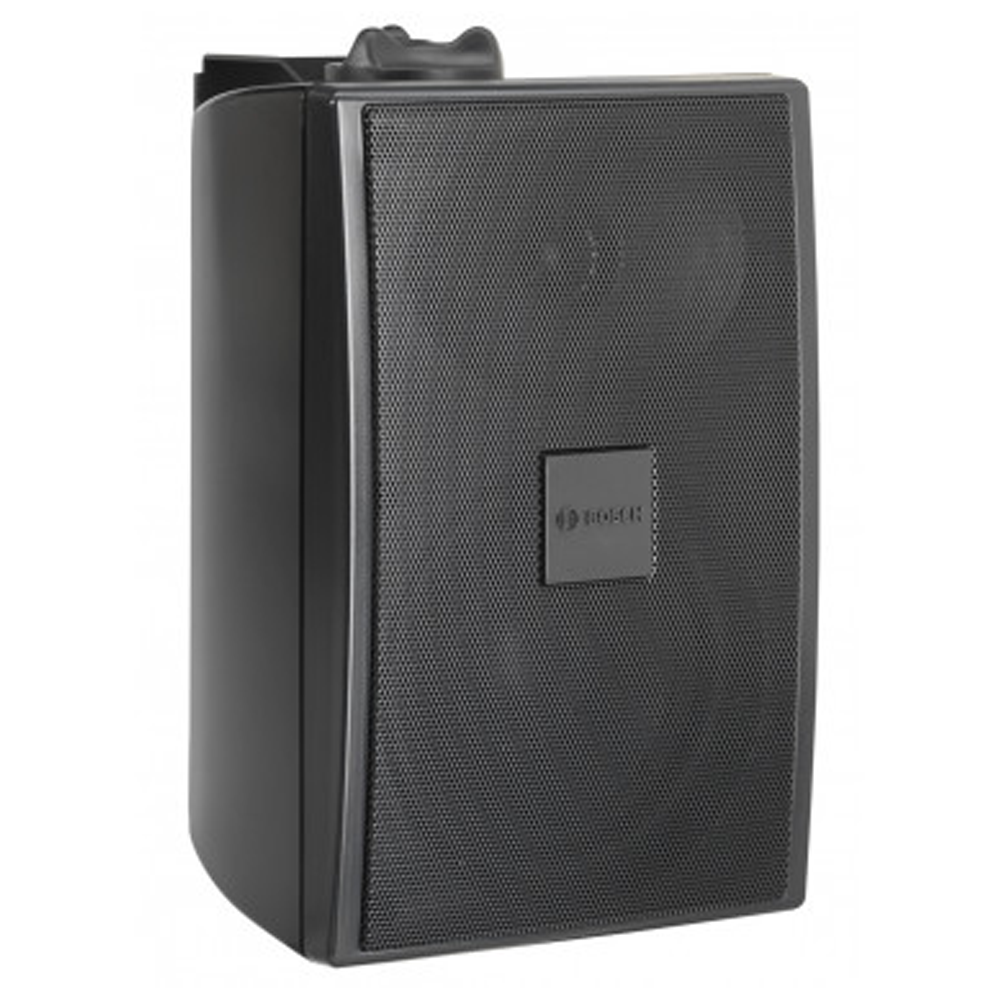

Bosch LB2-UC15-D1, 15W, Premium Sound Cabinet Loudspeaker, Black

Availablity:In stock

₹11,301.00



Check if the product is available for delivery to your location


Share


Bosch LB2-UC15-D1 BI-Directional Cabinet Loudspeaker

  • 15 watt Premium sound speaker
  • High-fidelity music and speech reproduction
  • Compact yet robust ABS enclosure
  • Supplied with adjustable mounting bracket
  • Water and dust protected IP65

BOSCH LB2-UC15-D1 15W Cabinet loudspeaker is intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications.

BOSCH LB2-UC15-D1 15W Cabinet loudspeaker consists of a 15 W model, available in a dark color. The loudspeaker has selectable 8 ohm, 70 V and 100 V inputs.

The ABS cabinets are fitted with aluminum front‑grilles and standard supplied with aluminum bracket.

Typical applications are: theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas, showrooms, fitness centers and presentation environments.

All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 60268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations.

This ensures improved reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and lessons the chance of failure or performance deterioration.

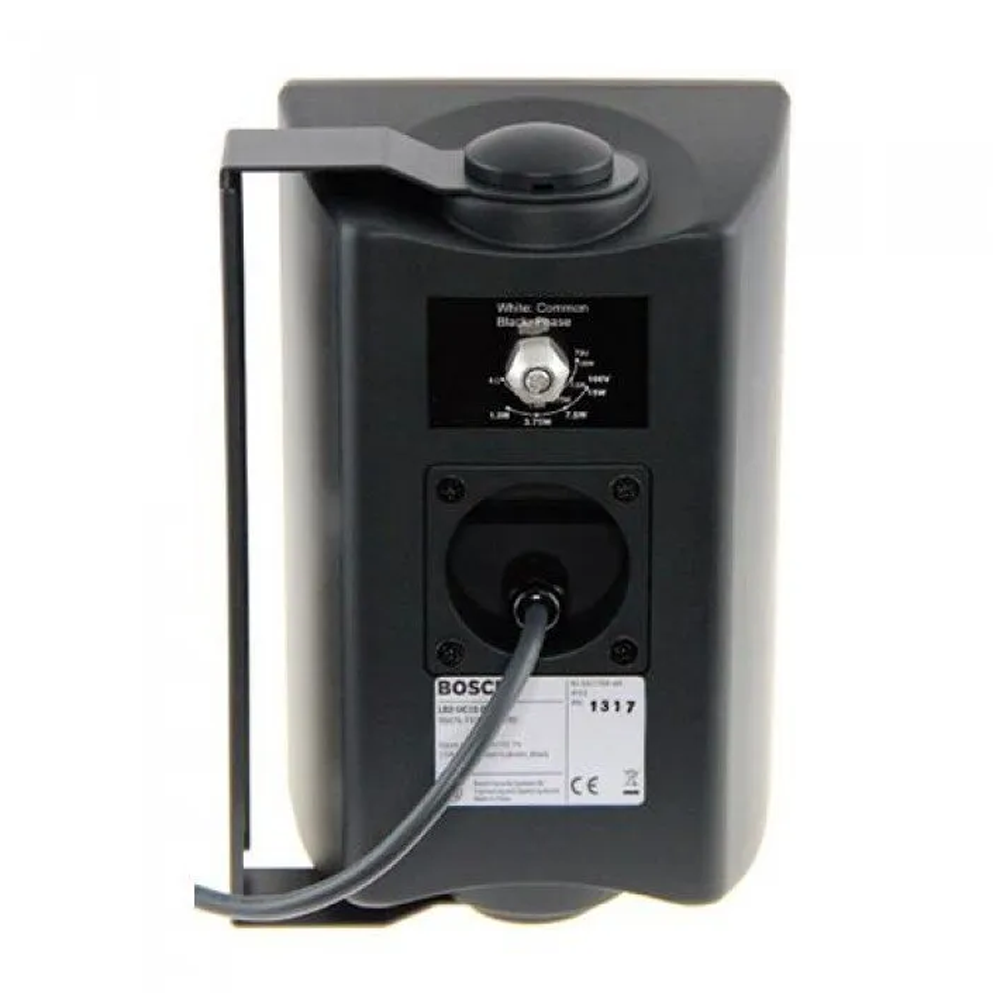

The cabinets include a built‑in transformer that offers a selection of nominal full power, half power, quarter power or eight power radiation (i.e. in 3 dB steps) for 70 V, 100 V or 8 Ohm bypass. Selection is done by a convenient switch on the rear Enclosure.

A two meter long twin‑core loudspeaker cable (in matching color with the cabinet) is connected to the loudspeaker. The core ends are stripped ready for use.

The mounting brackets are fitted with anti‑theft torx screws, covered with plastic covers in matching color of the cabinets.

The cabinets can be mounted horizontally to allow the, loudspeaker to be directed up or down, or vertically to allow left and right rotation by means of a steel U shaped wall bracket (standard supplied).

The rotatable logo can be easily adjusted to match the mounting orientation.

Technical Specifications

Manufacturer Bosch
Brand Bosch
Model No LB2-UC15-D1
Model Series Premium Sound Cabinet Loudspeaker
Product Type Cabinet Loudspeaker
Speaker Type Wall Speaker
Suitable for Speech Restaurants Schools & Retail Chain
Size 18 Inch
Maximum Power 22.5 W
Rated Power 15 W
Sound Pressure Level at 6 W/1 W (1 khz at 1m) 99/87 dB (SPL)
Effective Frequency Range (-10 dB) 95 Hz to 20 kHz
Opening angle horizontal(1khz/4khz,-6dB) 179° / 101°
Opening angle vertical(1khz/4khz,-6dB) 168° / 35°
Rated Input Voltage 100 V
Rated Impedance 667 ohm
Transducers 101.6 mm (4”) woofer, 13 mm (0.51 “) dome tweeter
Power Tapping 15/7.5/3.75/1.9 W
Operating Temperature -25 C to +55 C
Storage Temperature -40 ºC to +70 ºC
Relative Humidity 95%
Connection 2 m (78.8 in.) two wire cable
Product Material ABS
Color Black
Weight 1.9 kg
Product Dimension 21 x 17 x 25 cm
Warranty 1 Year
