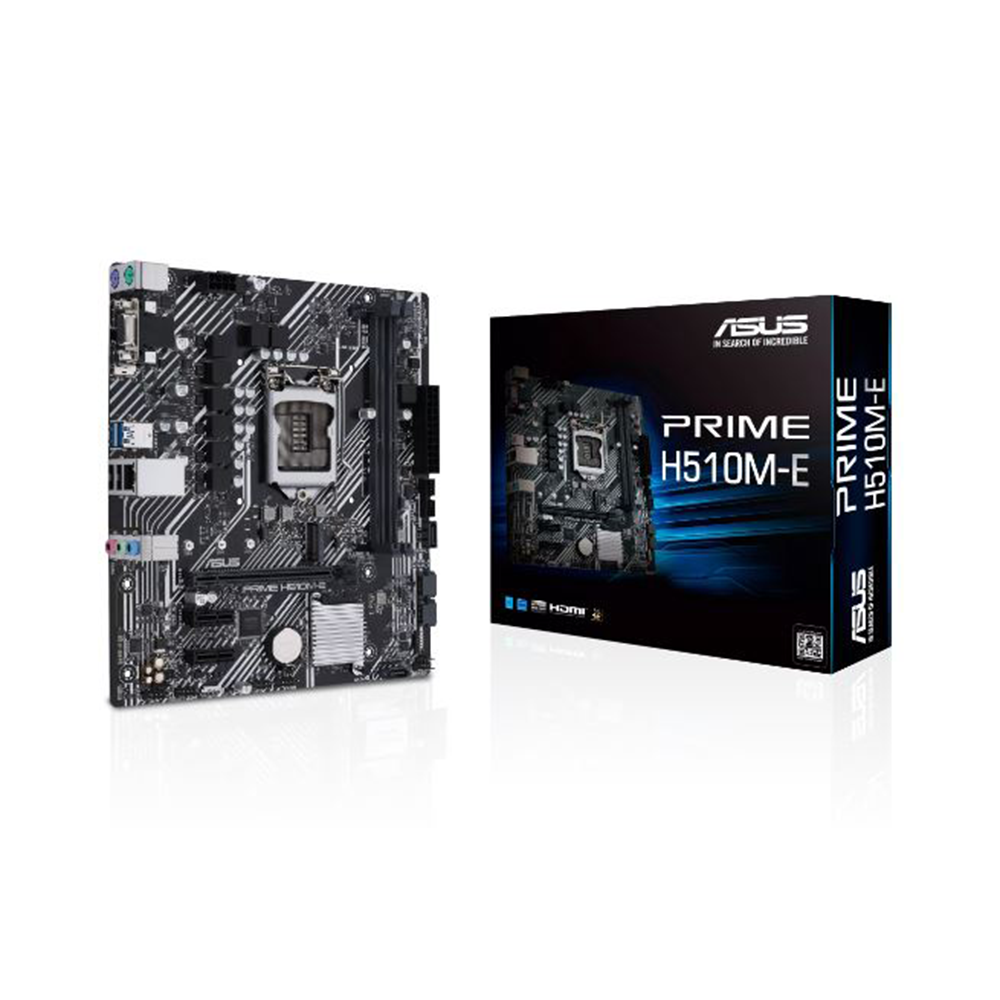

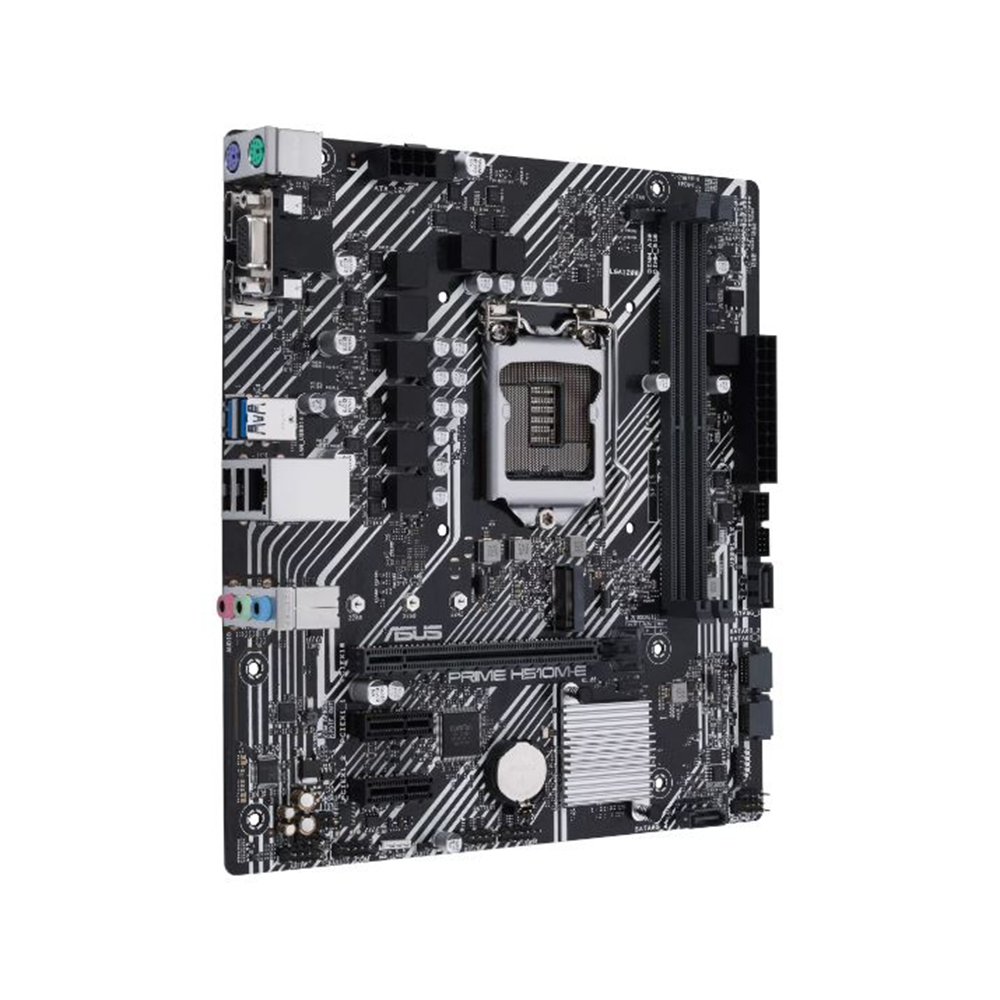

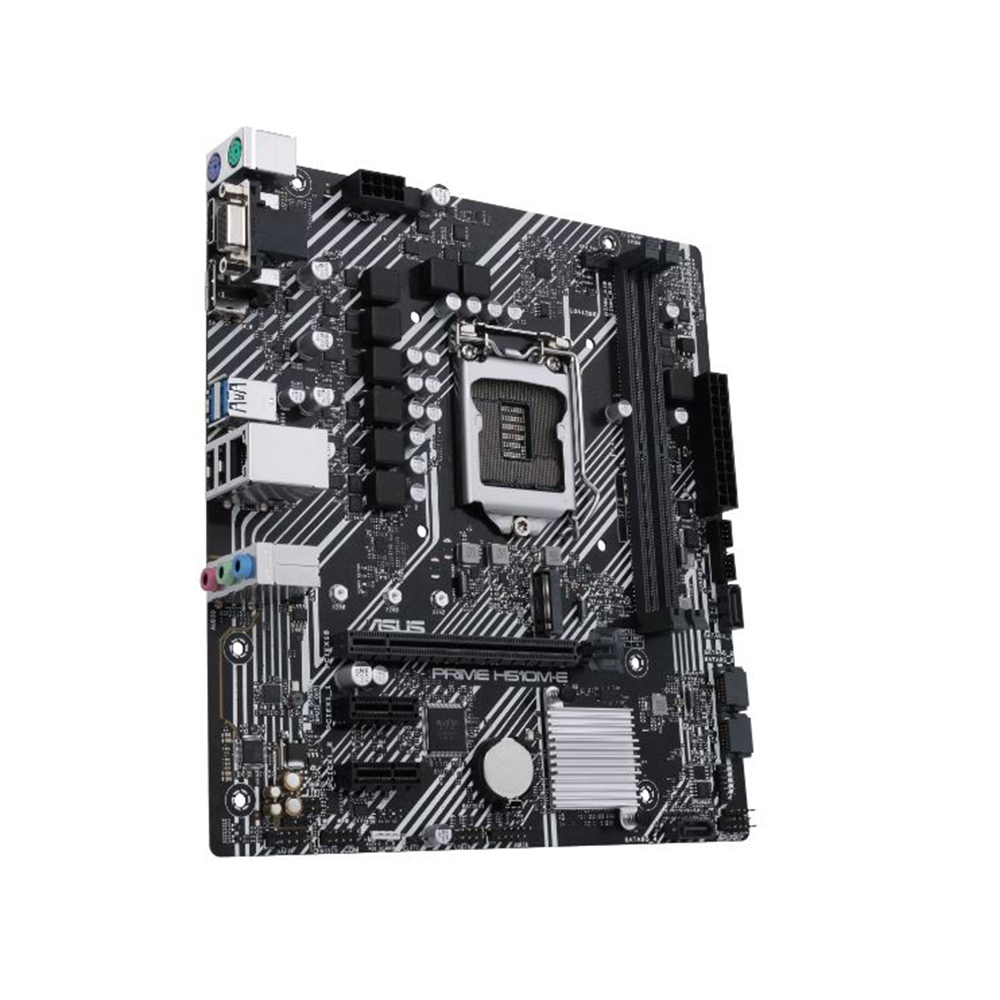

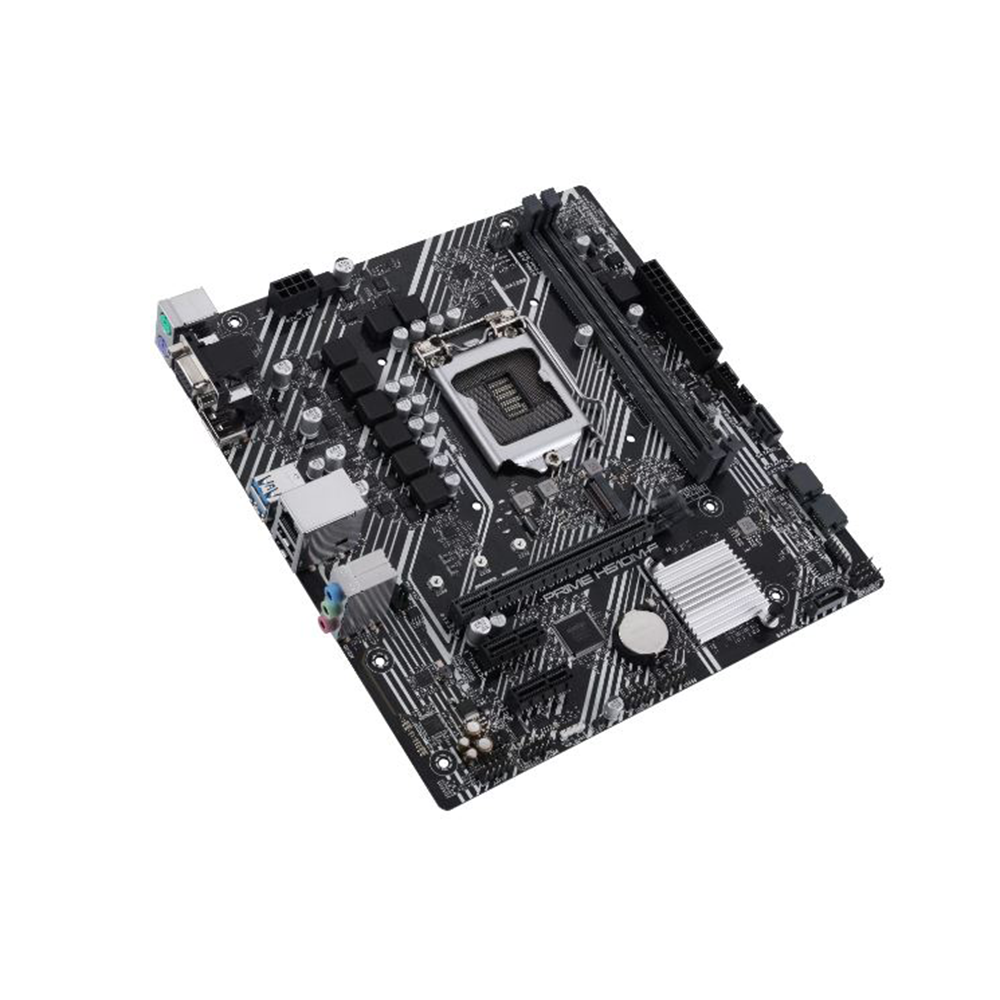

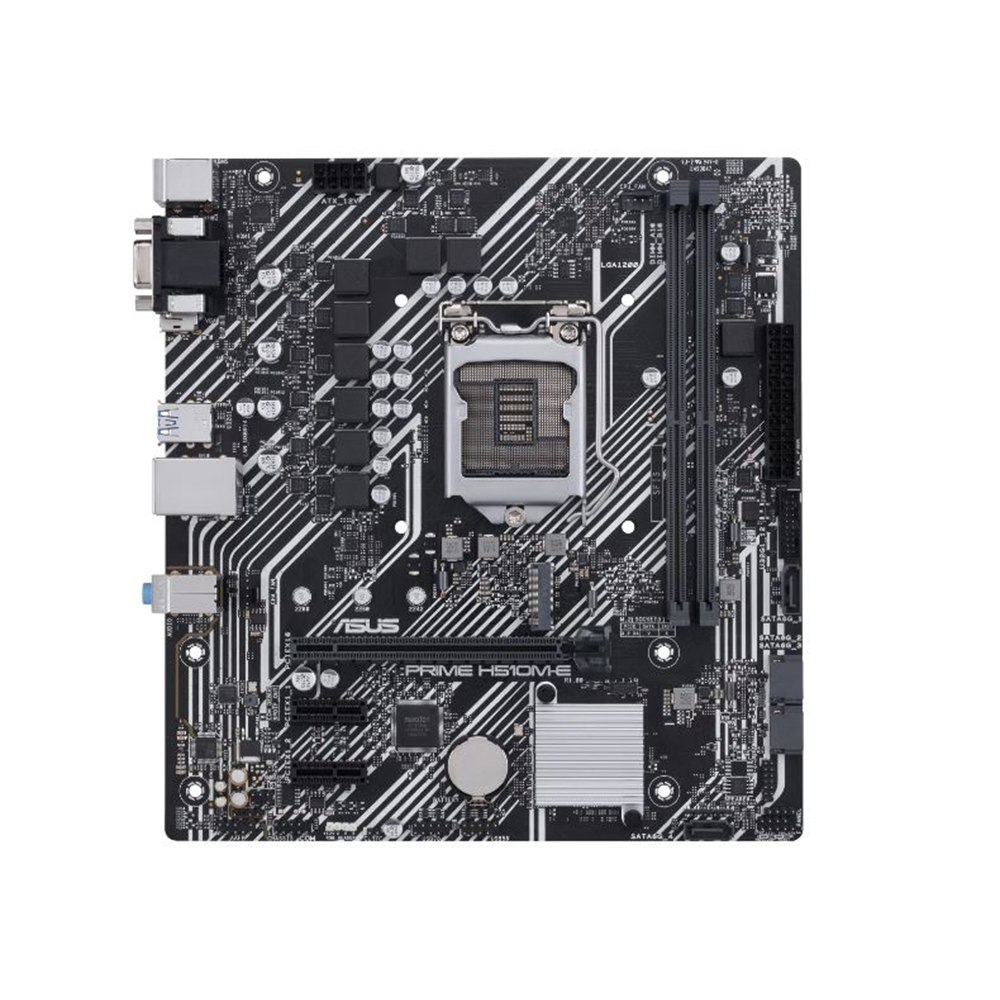

Asus Prime H510M-E Motherboard

Wishlist Compare

Check if the product is available for delivery to your location

Share

ASUS Prime H510M-E (LGA1200 for 11th & 10th Gen Processors) Micro ATX Motherboard with PCIe 4.0 M.2 Slot Intel 1 Gb Ethernet DisplayPort HDMI D-Sub USB 3.2 Type A SATA 6Gbps COM Header and RGB Header

Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors
Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1 Type-A
Comprehensive cooling: PCH heatsink and Fan Xpert
5X Protection III: Multiple hardware safeguards for all-round protection

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Cooler by Design

Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS

Multiple Temperature Sources : Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

4-Pin PWM/DC Fan : Each onboard header supports PWM or DC mode.

M.2 (up to 32 Gbps)

M.2 slot supports data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.

PCIe 4.0

ASUS H510 motherboards are designed specifically for 11th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 1 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

SafeSlot Core

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.

Technical Specifications

Brand	Asus
Model Name	Prime
Model No.	H510M-E
CPU Support	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H510 Chipset
Memory	2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphic	1 x DisplayPort 1.4, 1 x D-Sub, 1 x HDMITM 2.0, Graphics specifications may vary between CPU types. Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot, Intel 11th Gen processors support PCIe 4.0 x16, Intel 10th Gen processors support PCIe 3.0 x16, Intel H510 Chipset 2 x PCIe 3.0 x1 slots
Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes), 4 x SATA 6Gb/s ports, The M.2 slot shares bandwidth with SATA6G_2. When a device in SATA mode is installed on the M.2 slot, SATA6G_2 port cannot be used.
LAN	1 x Intel I219-V 1Gb Ethernet
Audio	Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback. Audio Features Audio Shielding, Premium Japanese audio capacitors, Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
USB Ports	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A). Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Special Features	ASUS 5X PROTECTION III DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O. ASUS Q-Design Q-DIMM, Q-Slot. ASUS Thermal Solution Aluminum heatsink design. ASUS Lighting Control RGB header

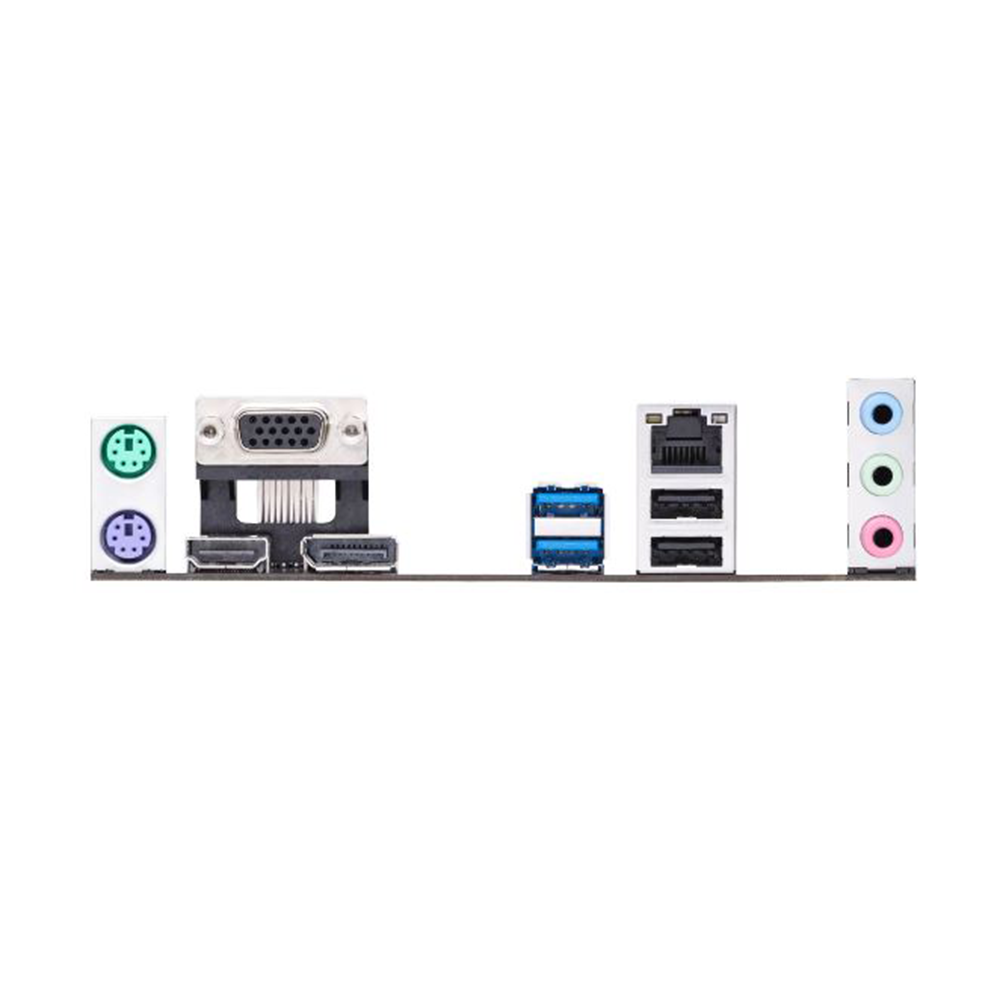

Back I/O Ports	2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x D-Sub port, 1 x HDMI port, 1 x Intel I219-V 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header. Power related 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports, USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports. Miscellaneous 1 x RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header
Operating System Support	Windows 11 64-bit, Windows 10 64-bit

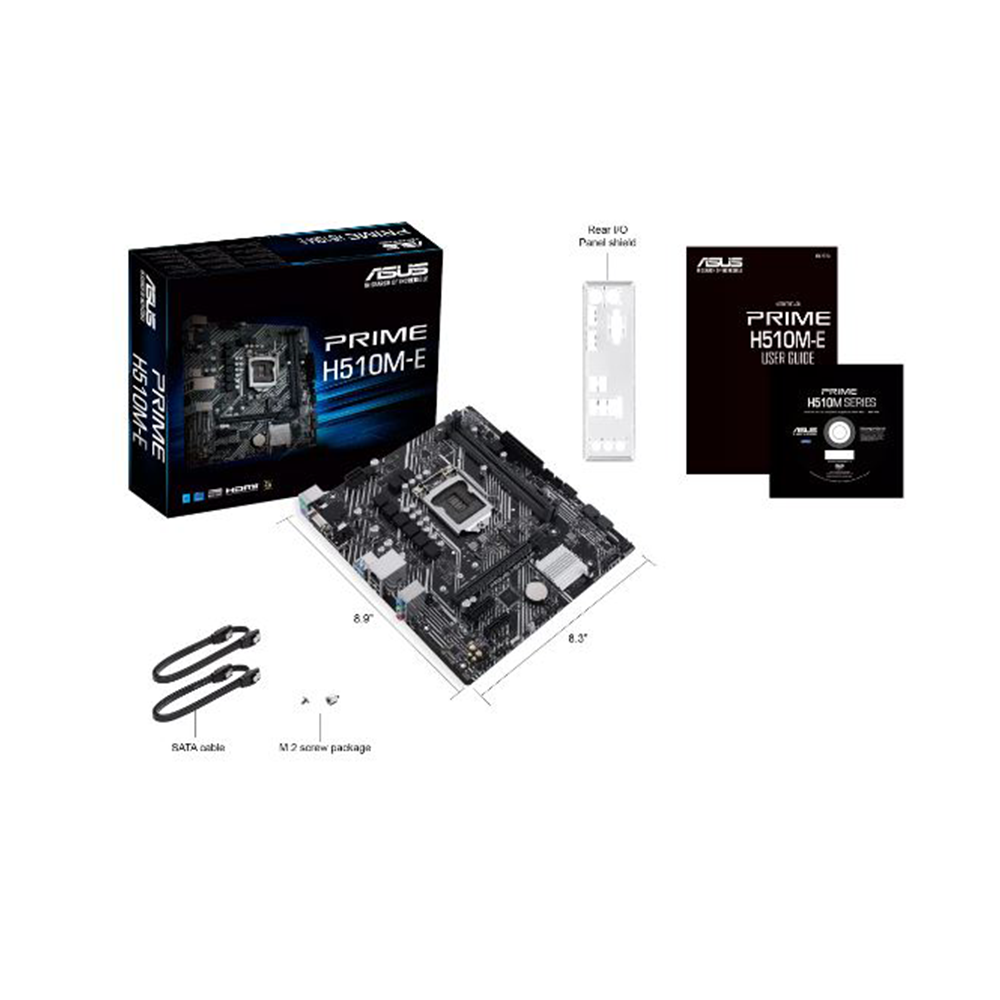

Form Factor	mATX Form Factor 8.9 inch x 8.3 inch (22.6 cm x 21.1 cm)
Warranty	3 Years
